Carbon Fiber Tooling Services — Custom Molds and Tools for Composite Production

Good carbon fiber parts start with good tooling. We design and build the tools that shape your parts: production molds, grinding tools, and inspection tools. Steel, aluminum, or carbon fiber — we help you pick the right tooling for your volume, budget, and quality target. From one prototype to mass production, our tooling team supports your whole project.

Get a Free Tooling Quote Explore Tooling Types

What Is Carbon Fiber Tooling?

Carbon fiber tooling means the molds, fixtures, and tools used to make carbon fiber parts. The mold gives the part its shape. Grinding and finishing tools give it the final surface. Inspection tools check that every part meets the drawing.

Tooling quality decides part quality. A good mold gives you stable dimensions, clean surfaces, and fast cycles. A poor mold gives you warped parts, pinholes, and rework. That is why experienced buyers invest in tooling first.

Note: this page covers tooling for making composite parts — molds, layup tools, and fixtures. If you are looking for cutting tools for carbon fiber sheets, that is a different product type.

Our Carbon Fiber Tooling Solutions

Production molds in three materials, plus finishing and inspection tooling. Each option fits a different production plan.

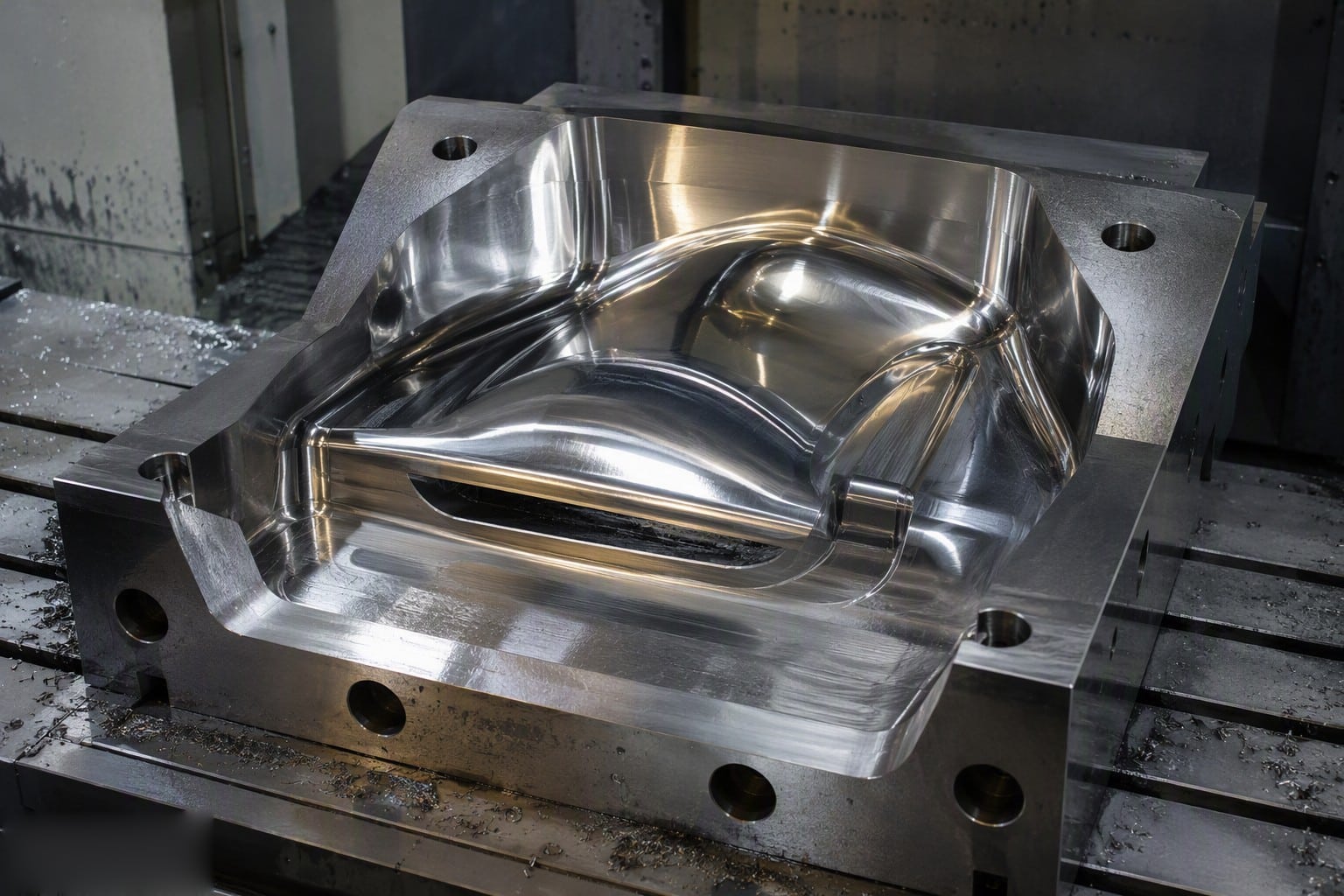

Steel carbon fiber tooling mold with mirror-polished cavity on CNC machine

Steel Molds

High Volume · Long Life
  • Very stable dimensions, even under heat and pressure
  • Long service life, built for mass production
  • Best for high-temperature, high-pressure curing
  • Higher cost, lowest cost per part at large volumes

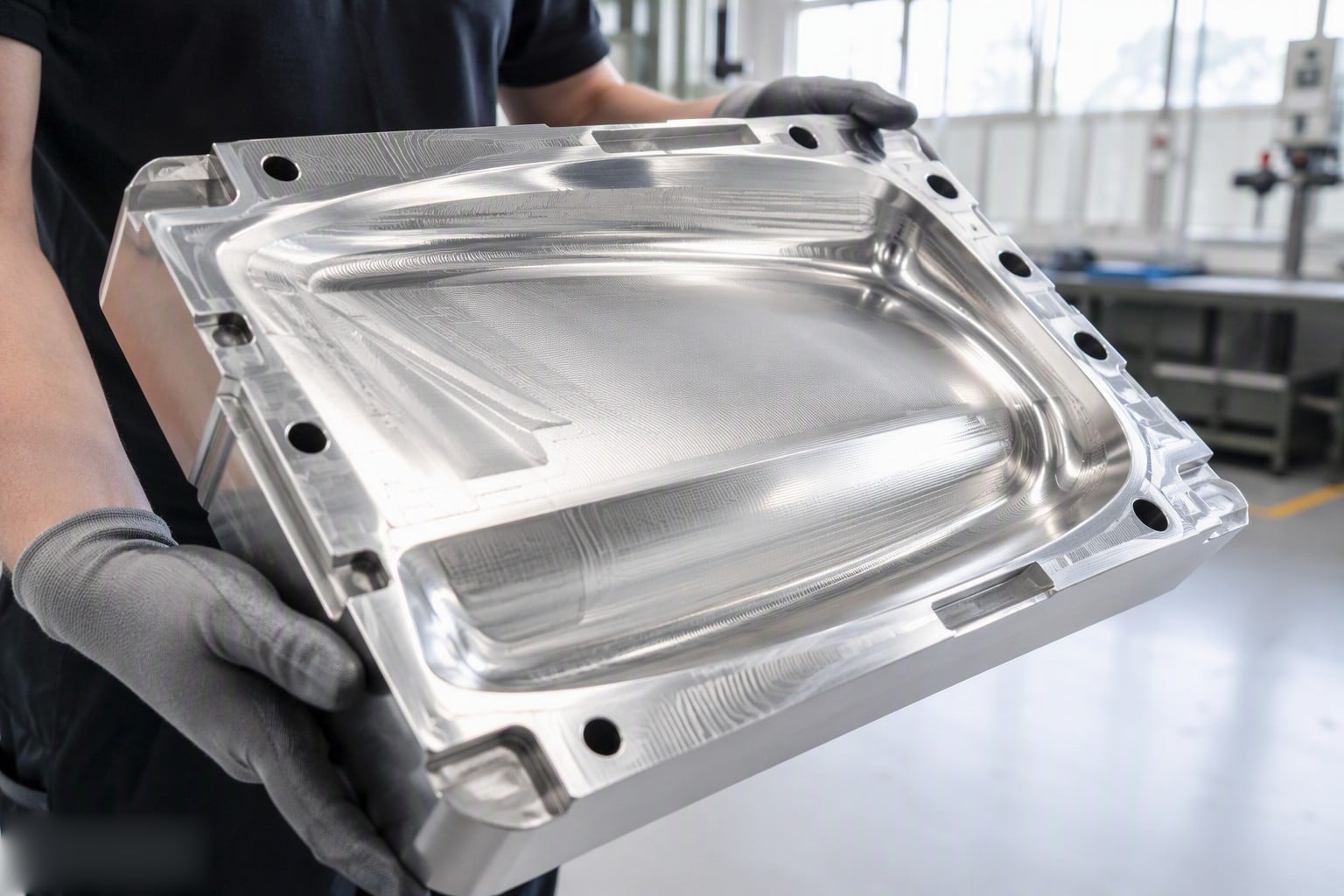

CNC machined aluminum mold for composite tooling, lightweight and fast heating

Aluminum Molds

Fast Cycles · Easy Handling
  • Light weight, fast to set up
  • Great thermal conductivity — even, rapid heating and cooling
  • Resists corrosion for stable long-term production
  • Strong choice for prototypes and mid-volume runs

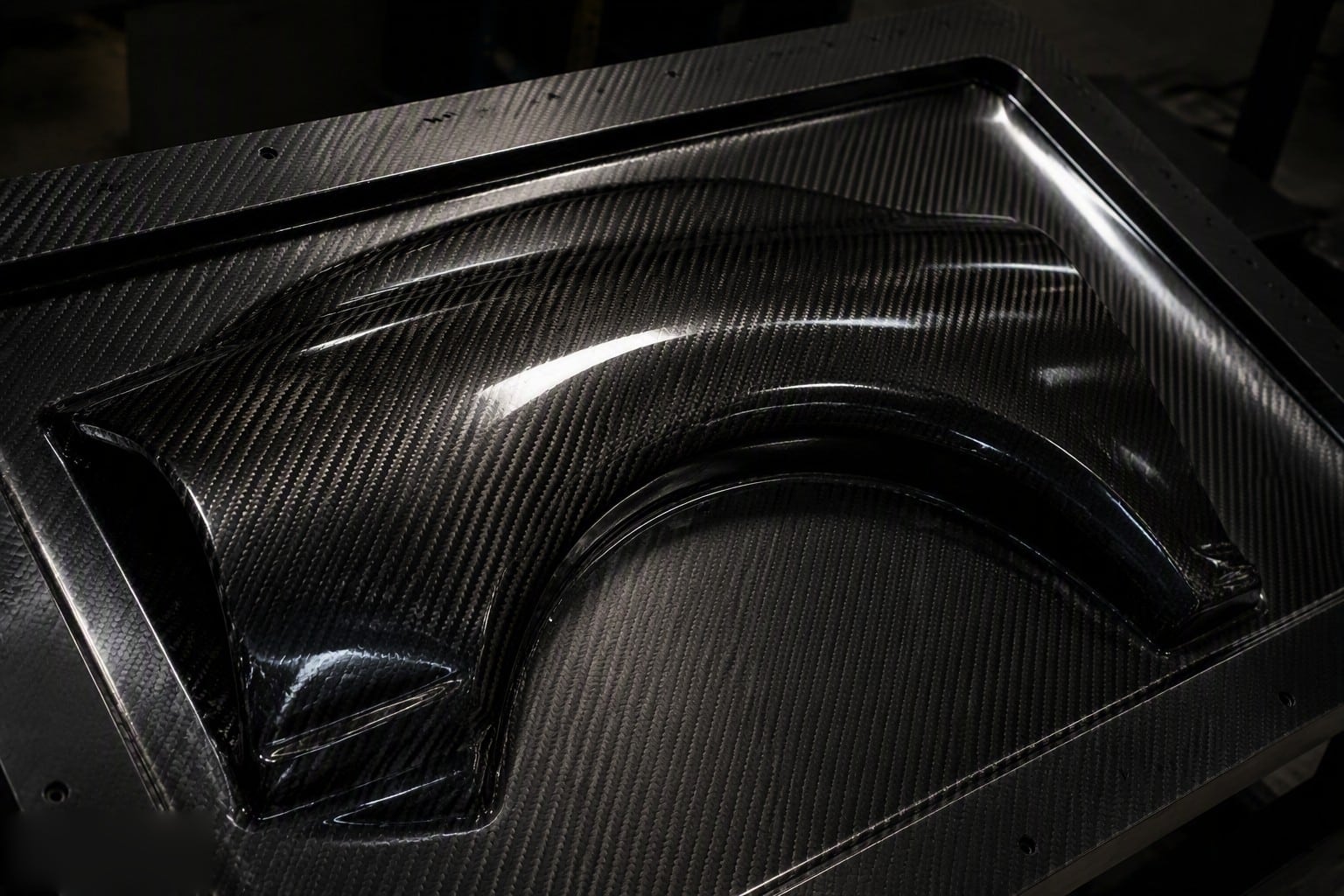

Glossy black carbon fiber composite mold with twill weave for wet and dry carbon processes

Carbon Fiber Molds

Wet & Dry Carbon Processes
  • Very low thermal expansion — mold and part stay dimensionally matched during curing
  • Wet carbon molds: about 100–200 parts per mold
  • Dry carbon molds: 300+ polish cycles
  • Cost-effective for custom and small-to-mid volumes

See our curing molds factory →

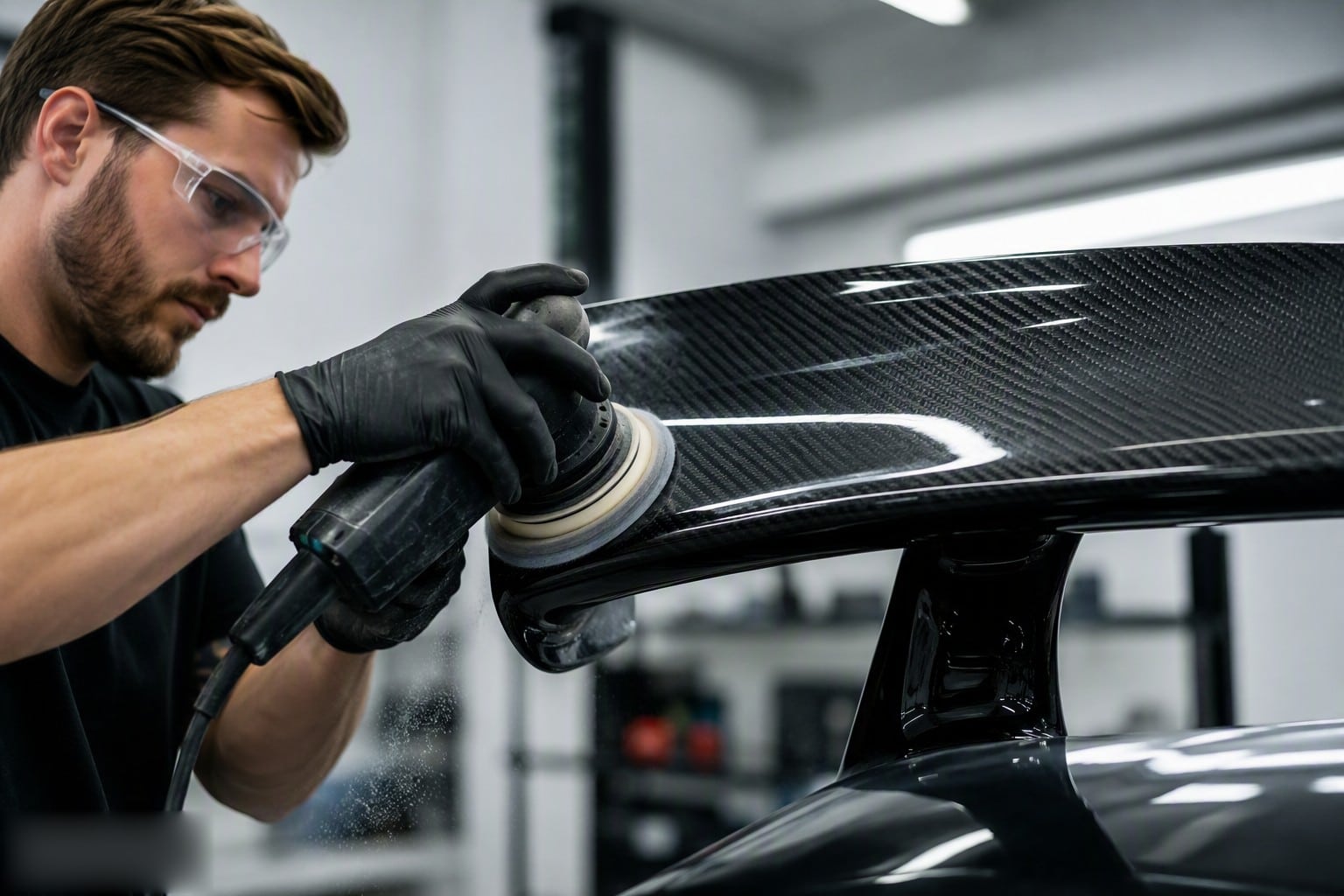

Worker polishing carbon fiber part with epoxy resin grinding tools

Grinding and Finishing Tools

Surface Quality
  • Fine surface finishing for visible (Class A) parts
  • Low heat generation — safe for heat-sensitive composites
  • Flexible for complex shapes, from shaping to final finishing
  • Optimized for wet carbon processes

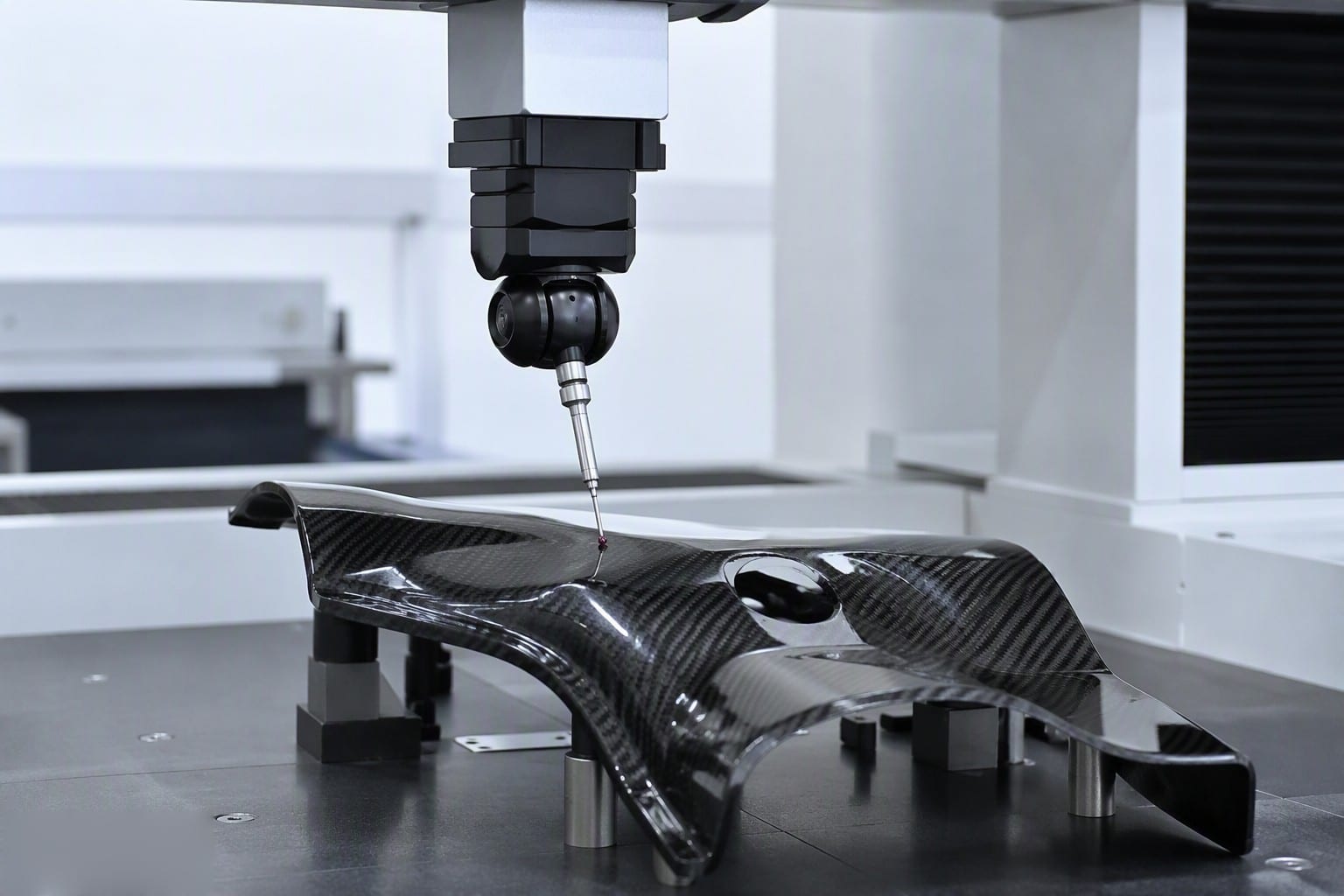

CMM inspection tools measuring a carbon fiber part for dimensional accuracy

Inspection Tools

Quality Verification
  • Dimensional accuracy — parts match the drawing
  • Surface quality — no pinholes, print-through, or defects
  • Material consistency — same quality across the batch
  • Performance validation — parts work as designed

How We Build Your Tooling

Free Feasibility Review

Send us your part drawing or idea. Our engineers check the design for manufacturability (DFM) and suggest the right tooling material and process. Free of charge.

Tooling Design

We design the mold: cavity, parting lines, venting, heating layout, and demolding. You review and approve before we cut metal.

Precision Machining

Our shop runs 80+ CNC machines. We machine, polish, and assemble your mold to tight tolerances.

Trial Production

We run trial parts on the new mold and check dimensions and surfaces before delivery. You get sample parts for approval.

Production Support

We keep your tooling in production, track quality, and maintain the mold for its full service life. Typical timeline from design to parts: about 58 days.

Which Tooling Material Should You Choose?

Tooling MaterialBest ForMold LifeKey Strength
SteelHigh-volume productionVery longStability under heat and pressure
AluminumPrototypes, mid-volumeMedium–longFast, even heating and cooling
Carbon fiberCustom parts, small-to-mid volume100–300+ cyclesNear-zero thermal expansion
Epoxy grinding toolsSurface finishingProcess-dependentSmooth finish, low heat

Not sure which one fits your project? Send us your part and target volume — we will recommend the option with the best total cost.

Applications of Our Carbon Fiber Tooling

Automotive & MotorsportsBody kits, hoods, wings, trim
Motorcycle PartsFairings, fenders, covers
Marine & OutdoorFins, hydrofoils, surfboards
Sporting GoodsPool cues, paddles, gear
Consumer ElectronicsMice, drone and device shells
Medical & MobilityRehabilitation components
AerospaceStructural composite parts
IndustrialFunctional composite parts

Why Choose JC AUTOCARBON for Carbon Fiber Tooling?

One-Stop Service

Design, tooling, and production under one roof. No handoff gaps between the mold maker and the part maker.

80+ CNC Machines

In-house machining capacity for fast tooling delivery.

On-Time Delivery 98%

Our AI system watches every step of development and production, with transparent schedules.

Proven Mold Life Data

We tell you up front how many parts each mold type delivers, so you can plan cost per part.

Free Feasibility Review

Cross-functional engineers check your design for practicality and production feasibility before you spend money.

Auditable Quality

Inspection tooling and test equipment verify every batch.

Frequently Asked Questions

What is carbon fiber tooling?
Carbon fiber tooling is the set of molds, fixtures, and tools used to manufacture carbon fiber composite parts. It includes production molds (steel, aluminum, or carbon fiber), grinding and finishing tools, and inspection tools.
How much does carbon fiber tooling cost?
Cost depends on part size, complexity, mold material, and target volume. Aluminum and carbon fiber molds cost less up front and suit smaller runs. Steel molds cost more but give the lowest cost per part at high volume. Send us your drawing for a free quote.
How long does it take to make a carbon fiber mold?
A typical project runs about 58 days from design review to approved trial parts. Simple molds can be faster. We confirm the schedule in your feasibility report.
How many parts can one mold produce?
It depends on the mold material and process. Wet carbon molds typically produce around 100–200 parts. Dry carbon molds can be polished over 300 times. Steel molds last far longer and suit mass production.
Should I choose a steel, aluminum, or carbon fiber mold?
Choose steel for high volume and demanding curing conditions. Choose aluminum for prototypes and mid-volume runs where fast cycles matter. Choose carbon fiber for high-precision parts and small-to-mid volumes — its thermal expansion matches the part, so dimensions stay stable during curing.
Can you make both the mold and the carbon fiber parts?
Yes. JC AUTOCARBON is a one-stop manufacturer. We design and build the tooling, then run your parts in our own factory — compression molding, vacuum process, prepreg hot pressing, and more. One supplier, one quality standard.
What do you need from me to start?
A 2D drawing or 3D model of your part is best. If you only have a sketch or a sample, our engineering team can still help — start with a free feasibility review.

Start Your Tooling Project Today

Send us your part drawing or idea. Our engineers will reply with a free feasibility report — tooling material, process, timeline, and cost.

Get a Free Feasibility Report
