Carbon Fiber Automotive Parts Prototyping Service
Turn your carbon fiber design into a validated, production-ready prototype — with controlled layup, the right tooling strategy, and real-vehicle fitment checks before you invest in mass production.
JC AUTOCARBON is the automotive-focused platform powered by JCSPORTLINE’s global carbon fiber engineering and manufacturing capabilities.
Prototype Scope
What automotive parts can you prototype with us?
Carbon fiber prototyping is not only for show pieces. We build functional prototypes that let you verify styling, fitment, structure and surface quality on real vehicles before production tooling is locked.

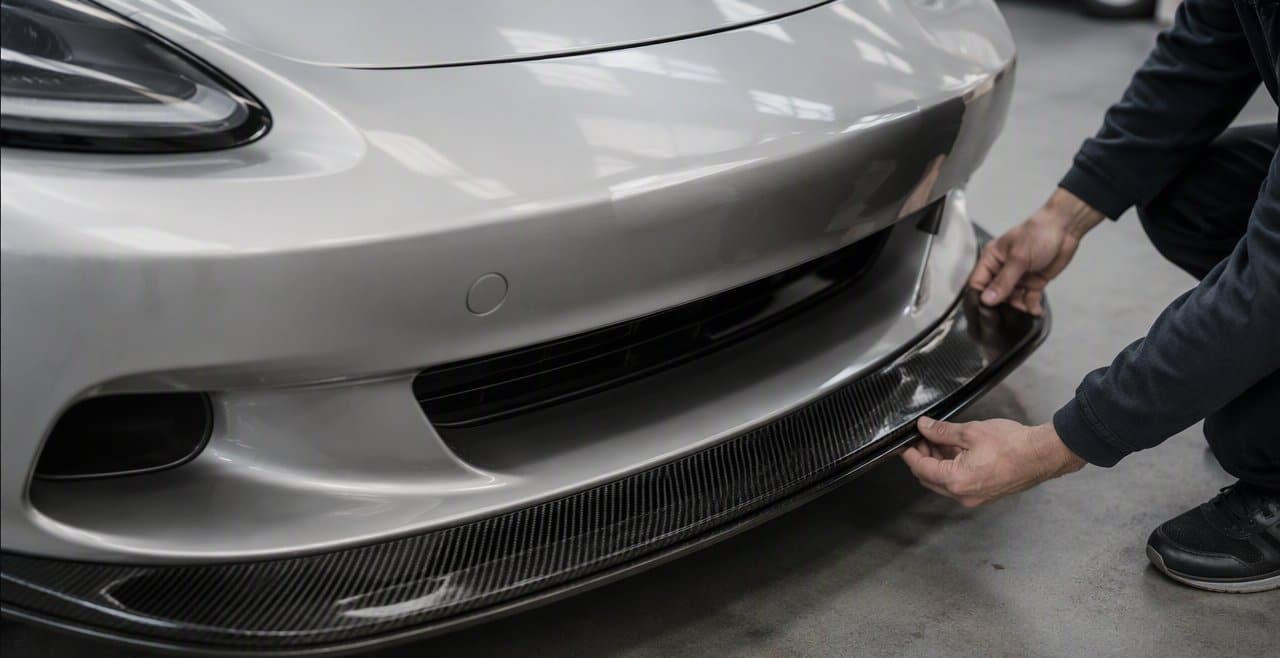

Exterior Body Kit Parts
Styling-first parts that must follow the vehicle’s body lines and install cleanly.

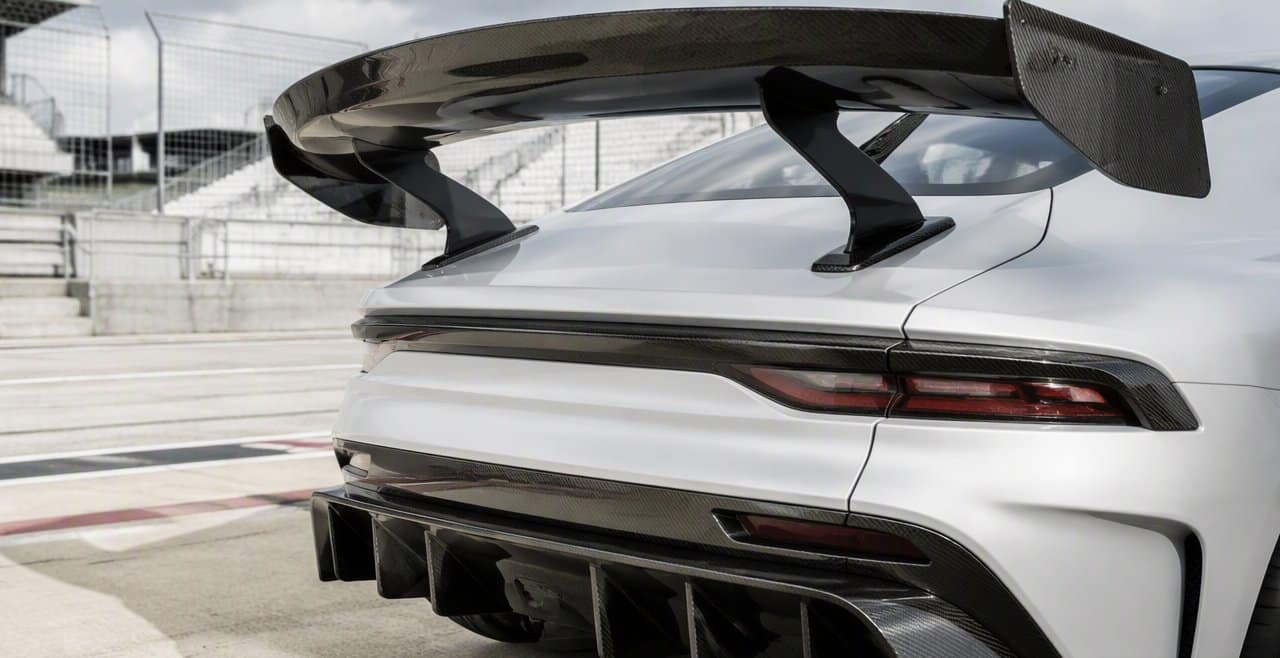

Aerodynamic Performance Parts
Functional aero parts validated with CFD logic, fitment checks and road or track testing.

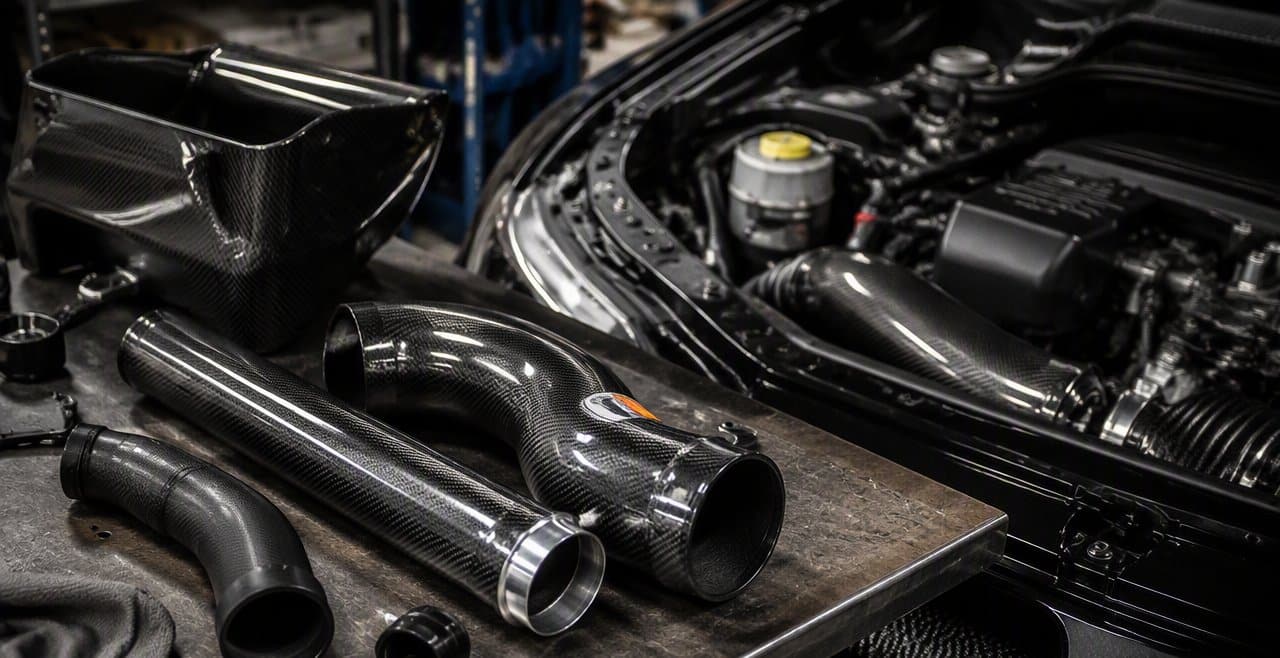

Structural & Functional Parts
Load-bearing or heat-exposed components that need controlled layup and accurate interfaces.

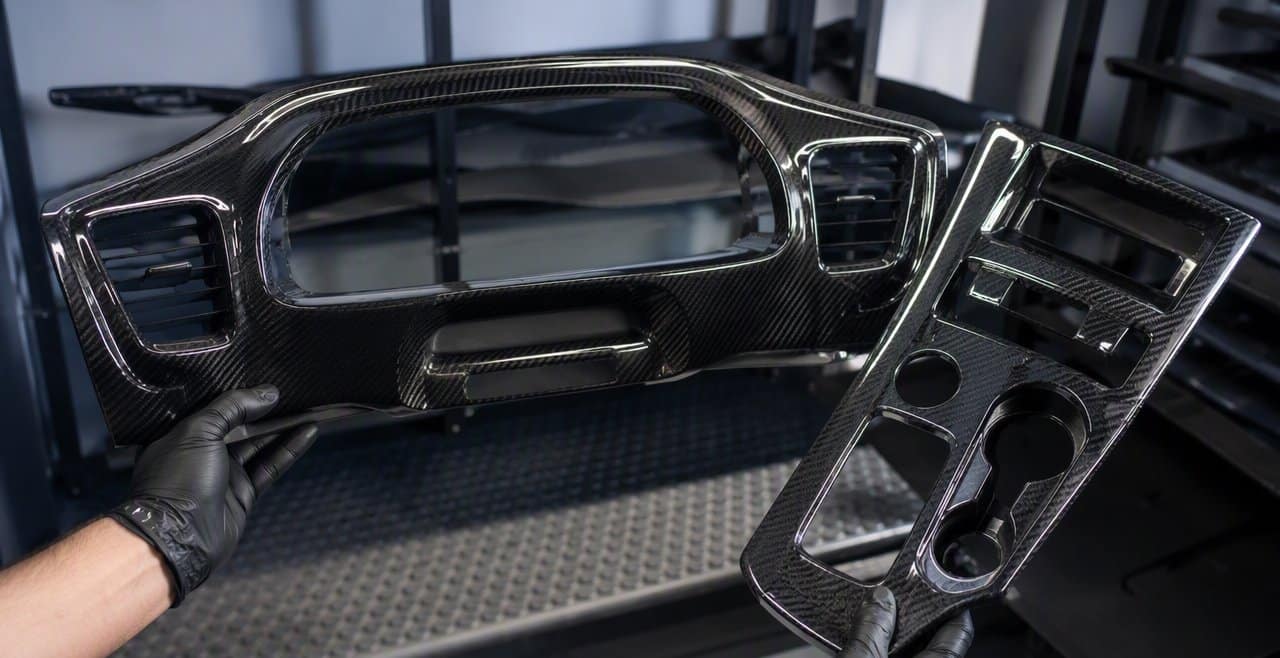

Interior Trim & EV Components
Cosmetic-grade carbon parts with tight surface and assembly requirements.
Methods & Tooling
Carbon fiber prototyping methods and tooling options
The right prototyping method depends on your part’s geometry, surface requirement, target weight and the production process you plan to use later. We match the method to your project goal — not the other way around.
Method | How it works | Best for |
|---|---|---|

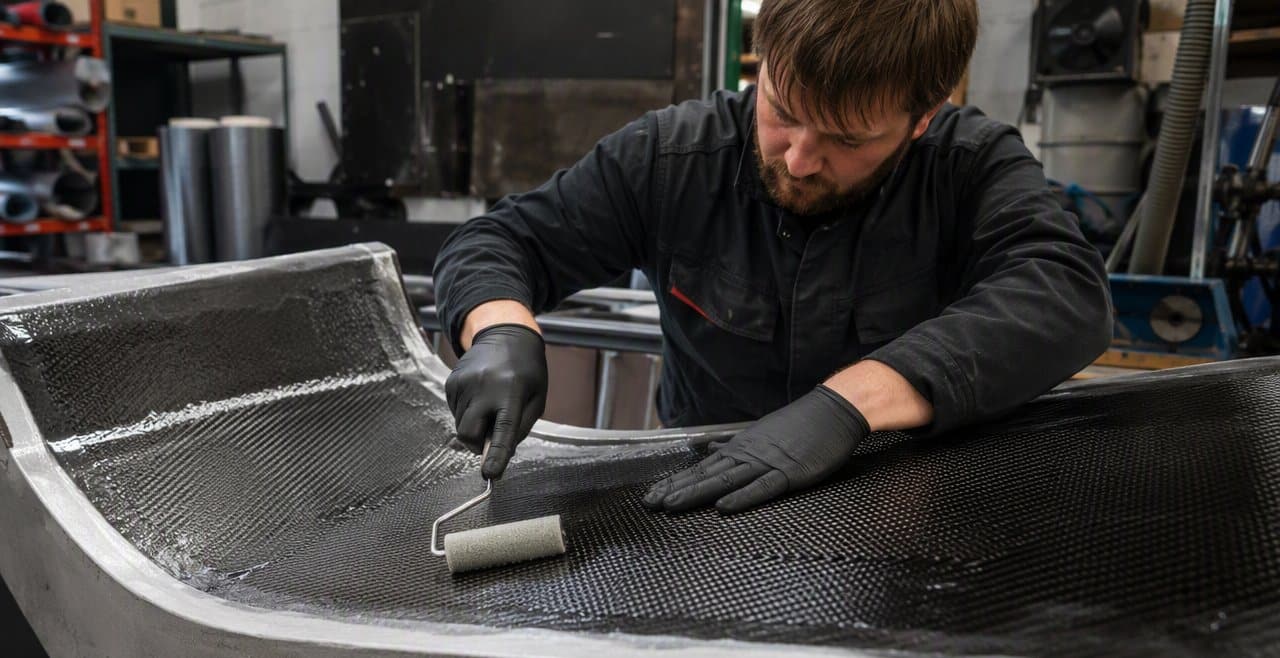

Wet Lay-Up / Vacuum Infusion | Carbon fabric is laid into a mold by hand, resin is applied or drawn in under vacuum, then cured at room or oven temperature. | Fast, cost-effective styling prototypes and large panels where visual carbon finish matters most. |
Compression Molding | Pre-impregnated or sheet molding material is pressed in a matched mold under heat and pressure. | Repeatable prototype batches, forged carbon parts and complex molded structures. |

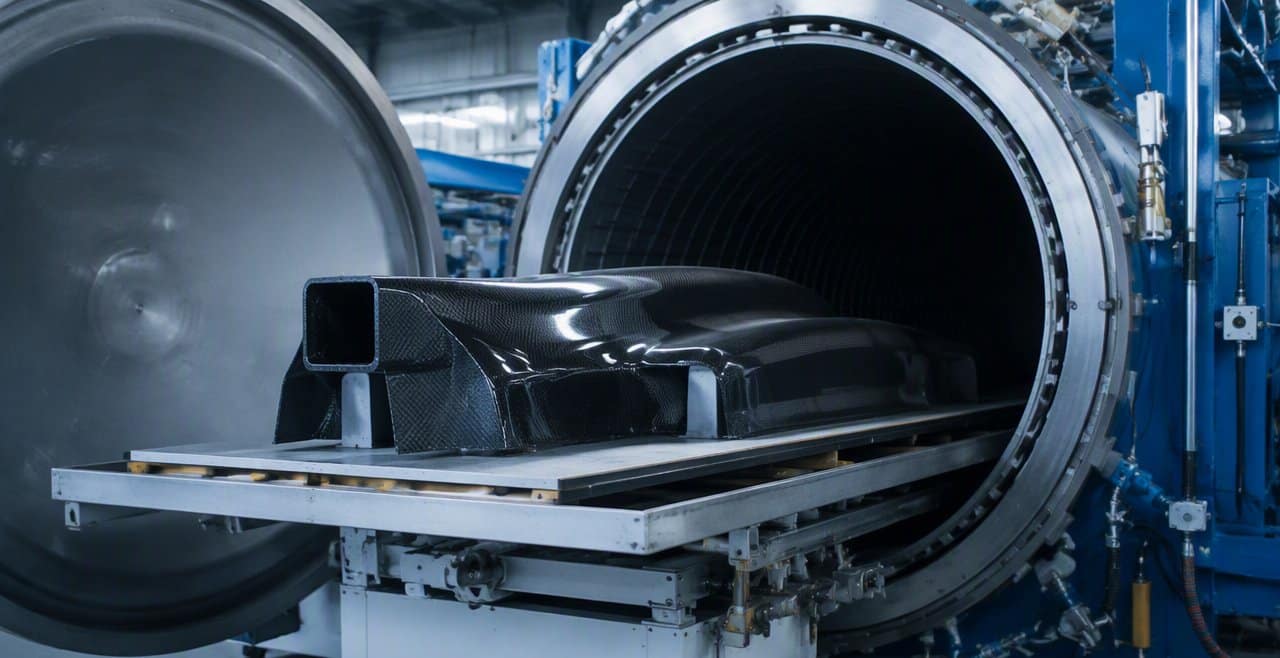

Prepreg / Dry Carbon (Autoclave or Oven Cure) | Pre-impregnated carbon fabric is laid up with defined ply orientation and cured under controlled temperature and pressure. | Premium performance parts — hoods, racing splitters, aero parts — where weight, stiffness and surface quality are critical. |
Hybrid Construction | Carbon combined with Kevlar, fiberglass cores or embedded metal inserts in one layup. | Parts needing impact resistance, load-bearing mounting points or multi-material structures. |
Soft Molds
Fast, low-cost molds for early styling and fitment iterations. Ideal when the design may still change.

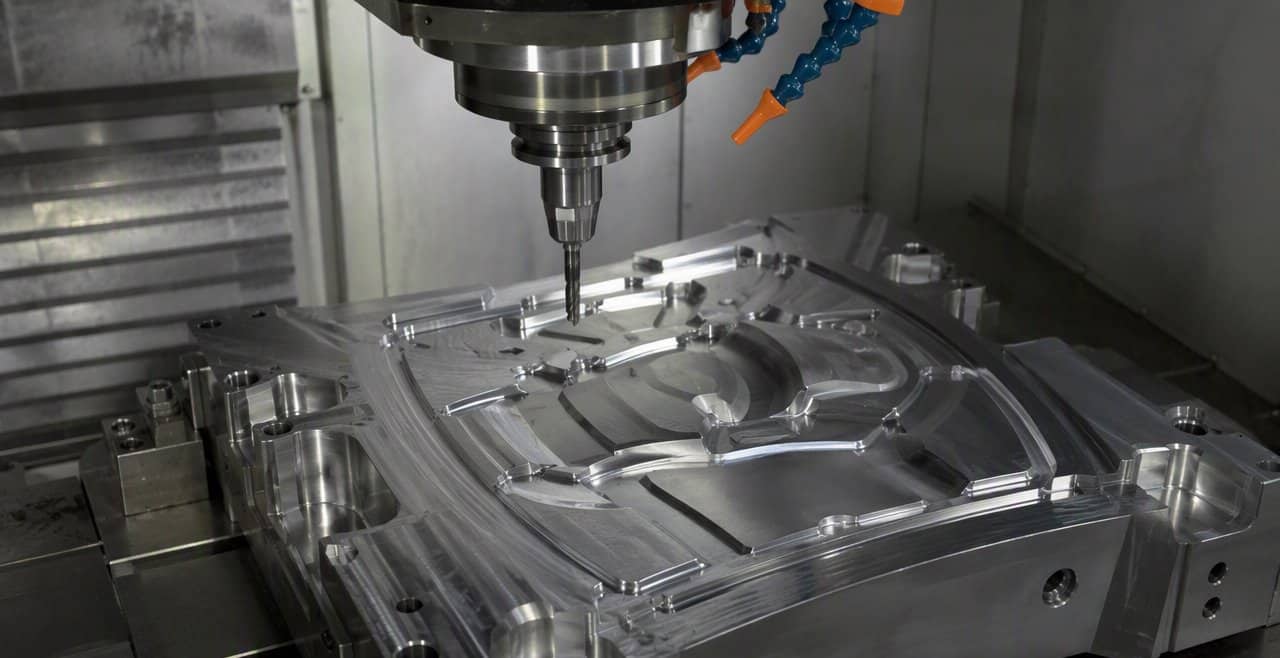

CNC Composite / Aluminum Tools
Accurate molds for functional prototypes that must reflect final geometry, gaps and surface quality.
Pre-Production Tooling
Tooling built with production intent for pilot runs, so validated designs scale without redesign.
Cost & Lead Time
What affects carbon fiber prototyping cost and lead time?
Carbon fiber prototyping costs more than plastic or aluminum prototypes because of material grade, mold making and controlled curing. Knowing the cost drivers early helps you choose the right tooling strategy and avoid paying twice.
Cost drivers
Lead time drivers
Typical timing: after design data is confirmed, most projects complete their first sample in 45–58 days. Simple soft-mold styling prototypes can be faster; prepreg parts with autoclave curing and multi-part kits take longer. Send us your project brief and we will return a free feasibility review with an estimated timeline and tooling plan within 24 hours.
Our Workflow

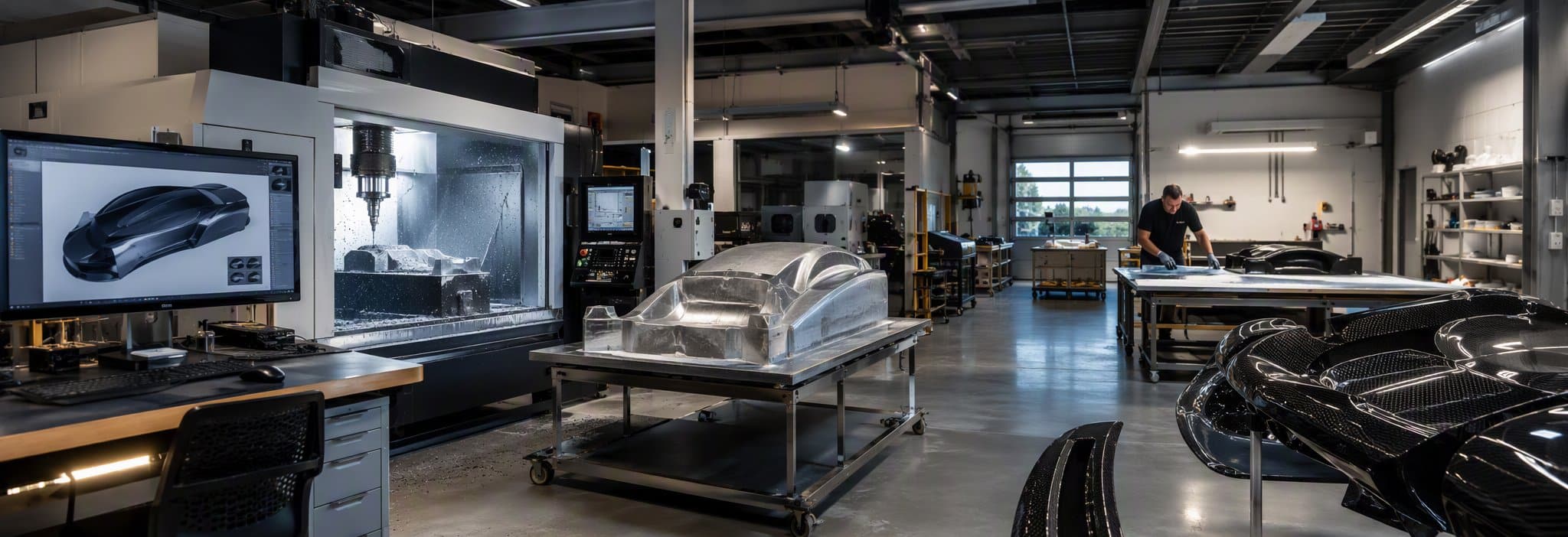

Carbon fiber prototyping workflow — from design to validated sample
Every prototype is built with production intent. Materials, layup logic and tooling decisions made at this stage are chosen so they can scale into stable batch production.
Design & DFM Review
We review your sketch, CAD, scan data or sample part — checking geometry, load paths, mounting points and manufacturability before any tooling starts.
Tooling Strategy
Soft molds, CNC tools or pre-production tooling are selected based on your iteration plan, budget and target production process.
Prototype Build & Cure
Controlled layup with defined ply orientation, verified on-tool, cured under autoclave, oven or vacuum-bag parameters as required.

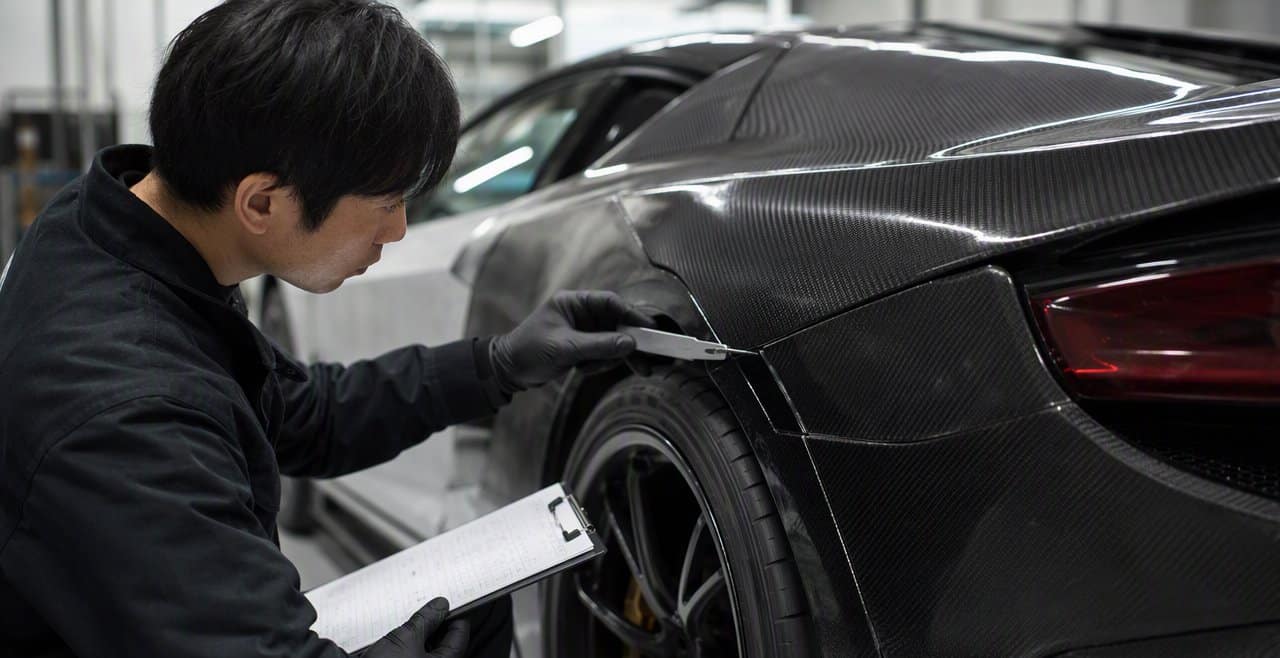

Fitment & Validation
The sample is checked on a real vehicle or assembly — gaps, mounting points, weight, stiffness and cosmetic surface quality.
Feedback & Approval
You receive photos, videos and a first-article inspection report. We refine the design or mold until you approve the production standard.
Plan Ahead
Prototype vs production — what to expect
A prototype proves the design. It does not automatically prove the production process. We plan both stages together so your prototype decisions do not become expensive mistakes later.
Prototype Stage | Production Stage | |
|---|---|---|
Main goal | Validate styling, fitment, structure and surface quality | Consistency, repeatability and unit cost control |
Tooling | Soft molds or CNC tools — fast to build, easy to modify | Production-grade molds with stable cycle and long tool life |
Quantity | 1 to a few sets per iteration | Batch production, from dozens to thousands of parts |
Design changes | Expected and low-cost — molds can be adjusted or rebuilt | Expensive after tooling is locked — changes require rework |
QC focus | First-article inspection, fitment and functional checks | Batch consistency records, pre-shipment inspection per piece |
Why it matters: every prototype at JC AUTOCARBON is built with production intent — layup logic, mold structure and demolding direction are planned so the approved design can scale into mass production without redesign.
Prototype Validation
Functional checks beyond surface finish
A handmade sample can look great and still fail in production. Our prototypes go through real validation before you approve anything.

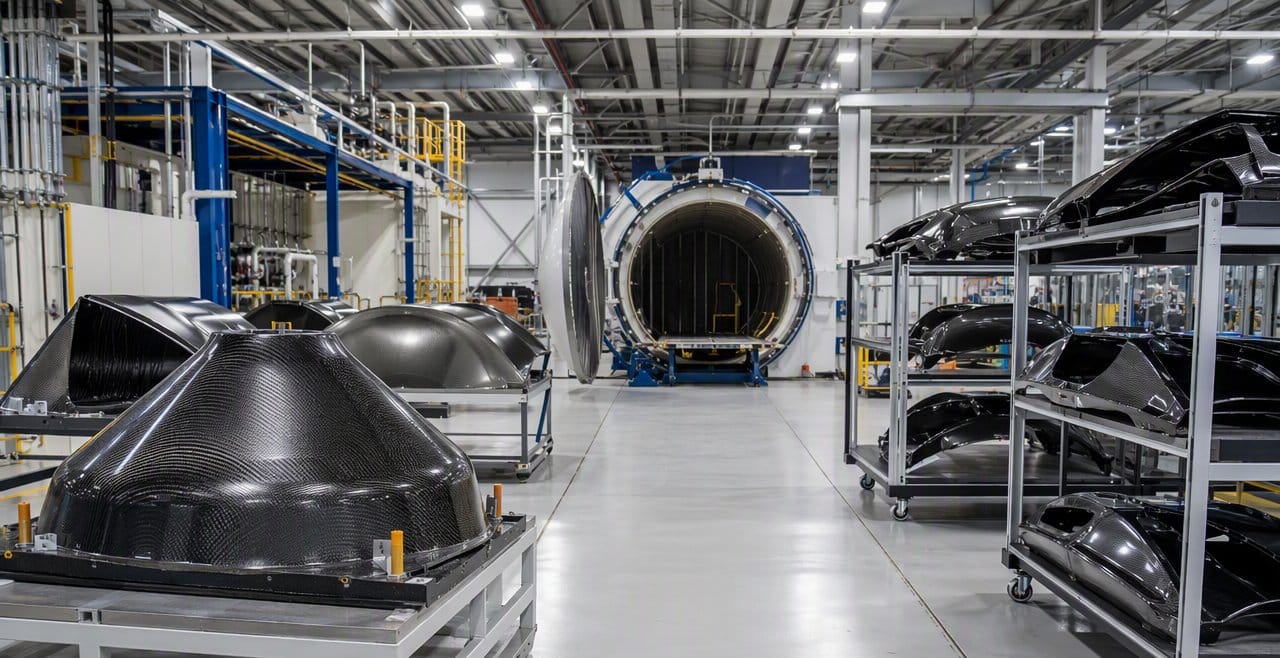

Why JC AUTOCARBON
Why brands prototype with JC AUTOCARBON
Carbon fiber prototyping fails when design, tooling and production are handled by disconnected suppliers. We connect every step under one automotive-focused workflow.
Automotive-Focused Platform
JC AUTOCARBON is the automotive-focused platform powered by JCSPORTLINE’s global carbon fiber engineering and manufacturing capabilities — prototyping is handled by a team that builds car parts every day.
Real Vehicle Data
3D scanning, reverse engineering and on-site scan collection in Europe and the United States keep prototypes accurate to the actual vehicle, not to a render.
Composite Engineering First
Layup direction, resin system, reinforcement zones and curing method are planned by the part’s function — not by guesswork.
Prototype-to-Production Continuity
Prototyping decisions are made with production intent, so validated designs move into tooling and batch production without starting over.
Fast Engineering Feedback
Free feasibility review within 24 hours — material suggestions, structure advice, tooling plan and estimated timeline, before you spend on molds.
NDA & IP Protection
Your design and data are strictly protected. NDA and confidential review are available on request for OEM/ODM and private-label programs.
FAQ
Carbon fiber prototyping — frequently asked questions
Common questions from brands, tuning shops and engineering teams starting a carbon fiber prototype project.
Start your carbon fiber prototype project
Send us your sketch, CAD file, sample part or reference photos. Our engineering team will review your concept and send back a free feasibility report — with material suggestions, tooling strategy and an estimated timeline — within 24 hours.
🔒 Your design and data are strictly protected under NDA. · Response within 24 hours by our engineering team. · No obligation before you approve the plan.
