Carbon Fiber Fabric Manufacturer & Supplier — Woven In-House, Shipped Worldwide
JC AutoCarbon weaves carbon fiber fabric in our own factory using Toray filament. Plain, twill, satin, unidirectional and custom weaves from 1K to 24K — with low MOQ, free swatches, and engineering support for your lamination process. As China’s largest carbon fiber production factory, we take on all kinds of carbon fiber related products and business.
JC AUTOCARBON is JCSPORTLINE’s automotive carbon fiber platform.
Request Free Swatches: info@jcautocarbon.com
Toray Filament
Quality controlled from the source
In-House Weaving Factory
Factory-direct pricing, no middleman
5-Stage Fabric Testing
Tensile, density, thermal, chemical, micro
Fabric → Finished Part
Full composite manufacturing under one roof
Product Range
Carbon Fiber Fabrics We Supply
From cosmetic-grade 3K twill to structural unidirectional reinforcement, we weave and stock the fabrics composite workshops, brands, and OEMs actually use. Every fabric below can be customized in areal weight, width, and roll length.

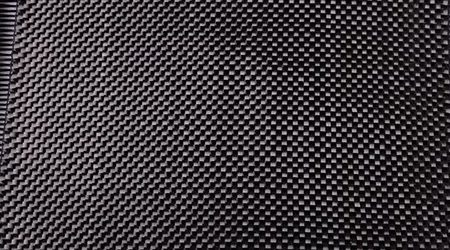

Plain Weave Fabric
Tight 1×1 interlace with excellent stability and easy handling. Holds weave angle during cutting and lay-up — the workhorse for flat panels and structural skins.
1K · 3K · 6K · 12K
Twill Weave Fabric (2×2)
The most recognizable carbon look. Better drapability than plain weave, ideal for curved molds and visible parts. Our most popular fabric for automotive and consumer products.
3K · 6K · 12K · 24K

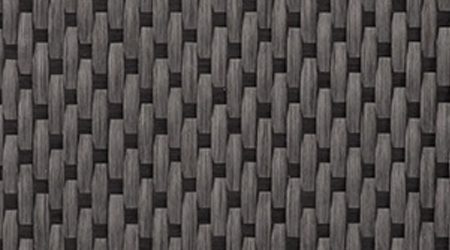

Satin Weave Fabric
Long fiber floats give the best drapability of any woven fabric. Conforms to complex double curvature with minimal wrinkling. Smooth, premium surface finish.
Complex shapes · Cosmetics

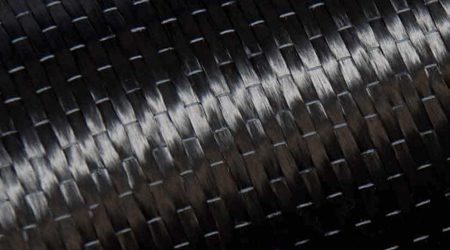

Unidirectional (UD) Fabric
All fibers aligned in one direction for maximum strength and stiffness along the load axis. The structural choice for beams, spars, and reinforcement plates.
Structural · Reinforcement

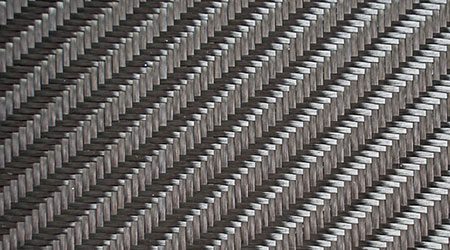

Multiaxial Fabric
Multiple fiber orientations (0°, ±45°, 90°) stitched in a single ply. Non-crimp construction keeps fibers straight for higher laminate performance and faster lay-up.
Biaxial · Triaxial
Non-Woven Carbon Mat
Chopped-fiber mat with isotropic properties and excellent resin wet-out. Ideal for surface layers, complex contours, and cost-sensitive structural builds.
Surface layers · Infusion

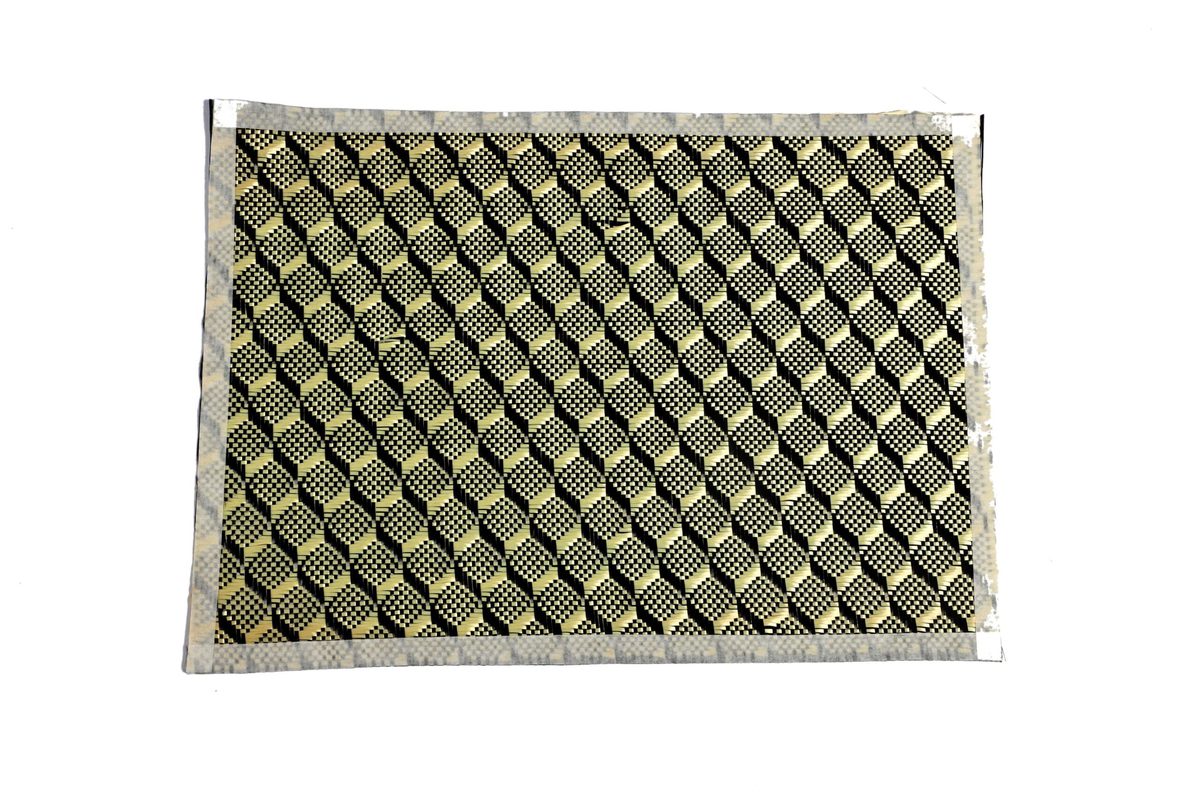

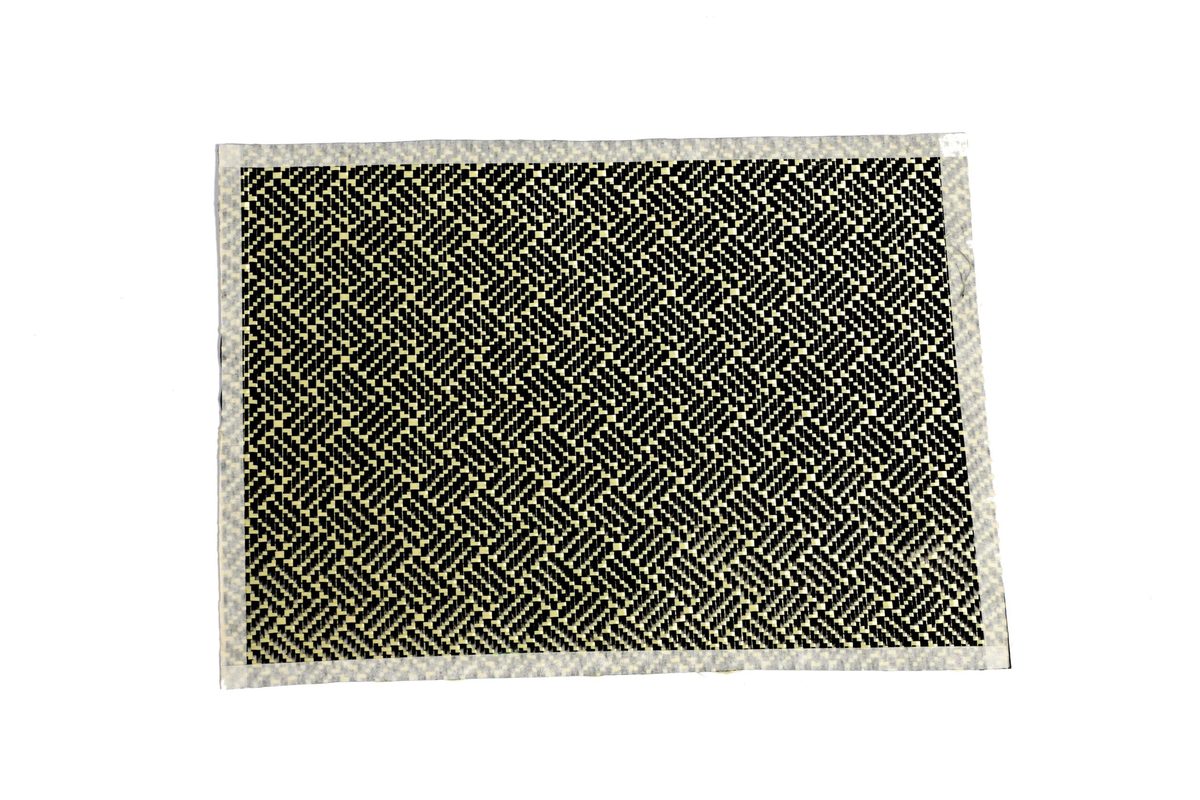

Hybrid & Colored Fabric
Carbon-aramid and carbon-glass hybrids balance cost, toughness, and appearance. Colored aramid interweaves (red, blue, gold) available for signature styling parts.
Carbon-Kevlar · Carbon-Glass

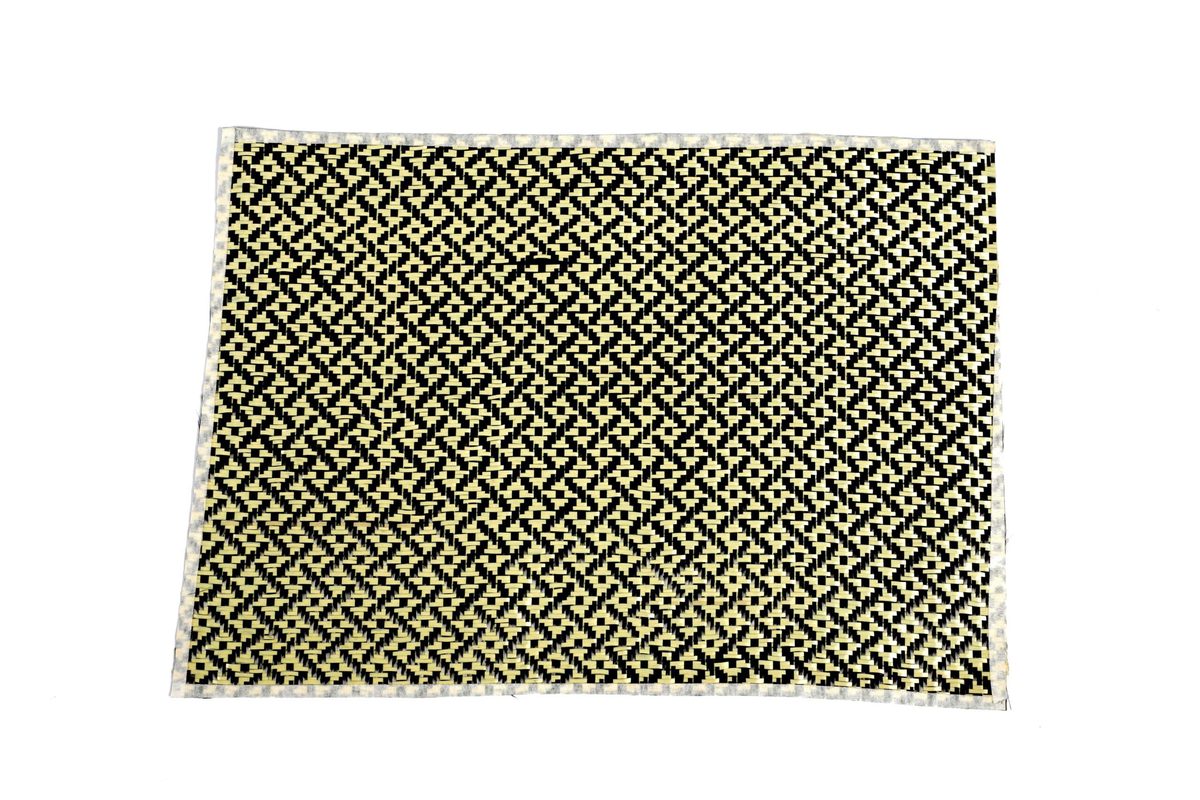

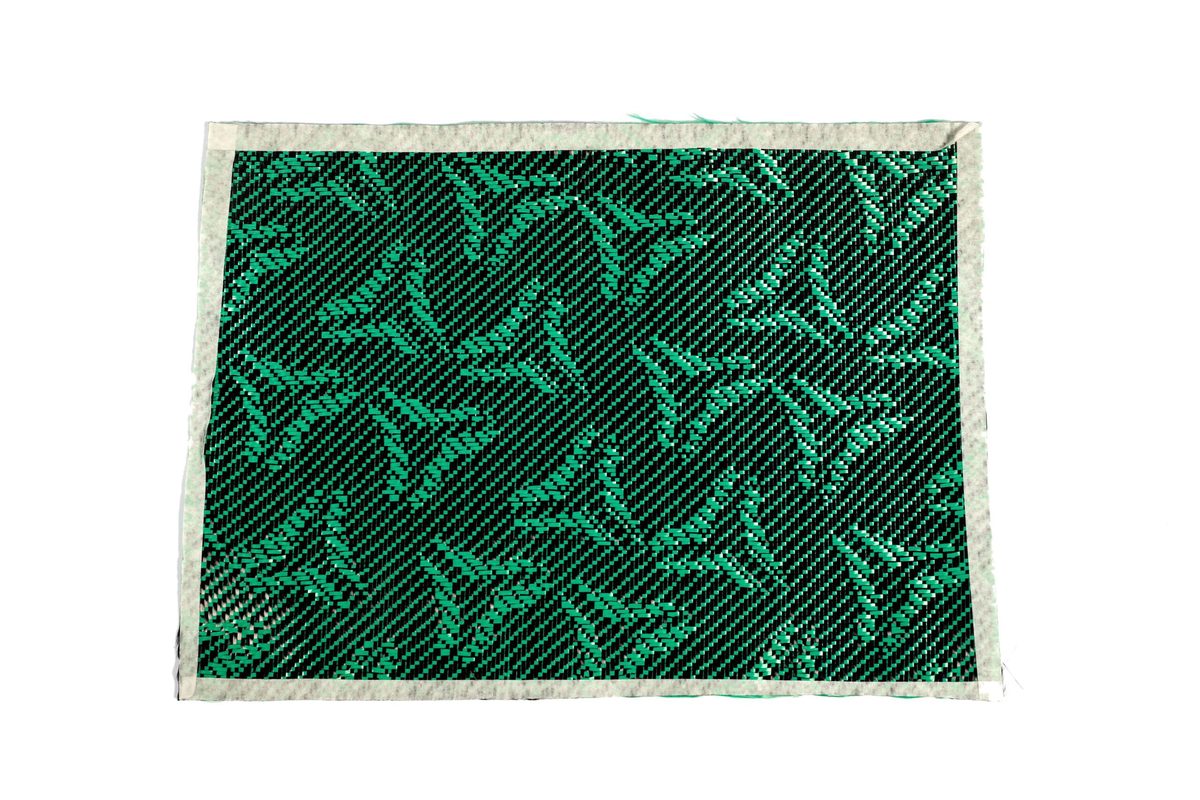

Custom Patterned Fabric
Jacquard-woven patterns, brand-color interweaves, and decorative layouts produced on our own looms — a signature carbon look that stands apart from standard 3K twill.
Custom weave · Brand colors
Specifications
Standard Carbon Fiber Fabric Specifications
The table below covers our standard supply range. All values can be customized — if your process needs a specific areal weight, width, or roll length, we will weave it to your specification.
| Fabric Type | Tow Size | Areal Weight (gsm) | Standard Width | Typical Applications |
|---|---|---|---|---|
| Plain Weave | 1K / 3K / 6K / 12K | 120 – 480 | 1,000 – 1,500 mm | Flat panels, structural skins, drones, RC models |
| Twill Weave 2×2 | 3K / 6K / 12K / 24K | 200 – 640 | 1,000 – 1,500 mm | Automotive trim, body panels, consumer products, visible parts |
| Satin Weave | 3K / 6K | 200 – 400 | 1,000 – 1,500 mm | Complex curved parts, helmets, sporting goods |
| Unidirectional (UD) | 12K / 24K | 150 – 600 | 300 – 1,000 mm | Beams, spars, structural reinforcement, plate lamination |
| Multiaxial (±45° / 0°/90°) | 12K / 24K | 300 – 800 | Up to 1,270 mm | Load-bearing structures, marine, industrial |
| Hybrid (Carbon-Aramid / Carbon-Glass) | 3K | 200 – 400 | 1,000 – 1,500 mm | Impact-resistant parts, colored styling parts, cost-optimized laminates |
* Values shown are our standard range for quotation reference. Areal weight tolerance is controlled at ±10 gsm for structural orders. Confirm final specs with our team before design freeze.
Selection Guide
Which Carbon Fiber Fabric Should You Choose?
Fabric architecture is a structural decision, not just a cosmetic one. Use this comparison to narrow down the right weave — or send us your part drawing and let our engineers recommend the fabric.
| Criterion | Plain Weave | Twill Weave | Satin Weave | Unidirectional |
|---|---|---|---|---|
| Fiber direction | 0° / 90° balanced | 0° / 90° balanced | 0° / 90° balanced | Single direction (0°) |
| Drapability | Fair | Good | Excellent | Good (one axis) |
| Dimensional stability | Excellent | Good | Fair | Needs stitching support |
| Strength efficiency | Good | Good | Good | Highest (along fiber axis) |
| Surface appearance | Checkerboard | Diagonal pattern | Smooth, low texture | Linear, technical |
| Best for | Flat panels, stable lay-ups | Visible & curved parts | Complex double curvature | Beams, spars, reinforcement |
Customization

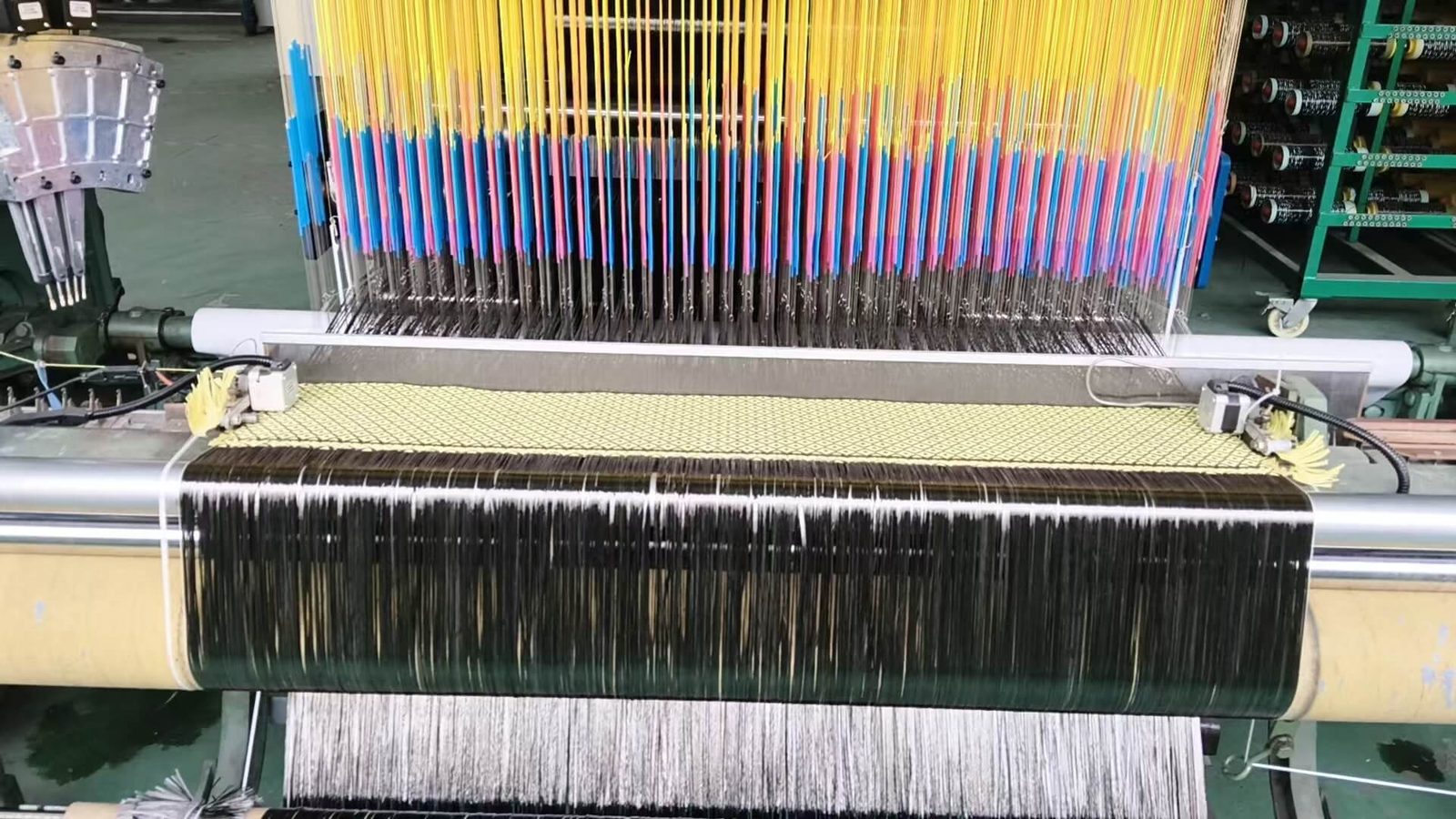

Custom Carbon Fiber Fabric Weaving
With in-house weaving capability, JC AutoCarbon produces carbon fiber fabric to your exact specification — not just what happens to be in stock. From functional structures to decorative layouts, we weave fabric that matches both your performance targets and your product design.
Engineering Customization
Weave pattern, tow size, areal weight, fabric width, roll length, and fiber orientation — all tuned to your laminate design and manufacturing process, whether you run hand lay-up, vacuum infusion, RTM, compression molding, or autoclave prepreg.
Visual Customization
Colored aramid interweaves, hybrid carbon-Kevlar patterns, metallic-filament accents, and jacquard layouts. We help brands build a signature carbon look that stands apart from standard 3K twill.
How It Works
From Inquiry to Delivery in 5 Steps
Buying fabric from a weaving factory should be simple. Here is exactly what happens after you contact us.
01
Send Your Requirements
Weave type, tow size, gsm, width, quantity — or just your application and process if you need a recommendation.
02
Spec Confirmation & Quote
Our engineers confirm the specification and send a detailed quotation within 24 hours.
03
Free Swatches / Samples
A4 swatches of stock fabrics ship free. Custom specs are sampled on the loom before bulk production.
04
Production & QC
Woven in our factory and verified by 5-stage testing: tensile, thickness/density, thermal, chemical, and microscopic inspection.
05
Packing & Global Shipping
Rolls packed on cores with moisture protection. Cut-to-size pieces and kits available. Air and sea freight worldwide.
Why JC AutoCarbon
Why Buy Carbon Fiber Fabric From Us
Most fabric sellers are distributors. We are the weaving factory — China’s largest carbon fiber production factory — and a full composite manufacturer taking on all kinds of carbon fiber related products and business. That changes what you get.
Factory-Direct, No Middleman
You buy from the loom, not from a reseller’s shelf. That means better pricing, real stock visibility, and direct access to the people who control production.
Toray Filament From the Source
We source high-quality carbon fiber filament from Toray and weave it in our own factory. Raw material is the foundation of laminate quality — we control it from the first meter.
5-Stage Fabric Testing Lab
Tensile performance, thickness and density, thermal stability, resin content and chemical durability, plus microscopic fiber inspection. Batch consistency you can build a spec sheet on.
True Custom Weaving
Weave pattern, weight, width, and color woven to order. We also supply cut-to-size pieces and lay-up kits to reduce your prep time and material waste.
Low MOQ With Stock Fabrics
Popular 3K plain and twill fabrics are stocked for fast dispatch. Trial orders and sample cuts are welcome — scale to volume when your product does.
Fabric-to-Part Engineering Support
We run prepreg autoclave, compression molding, and infusion lines every day. When you ask which fabric fits your process, you get an answer from people who laminate with it — not a catalog clerk.
Quality Assurance
Every Roll Verified Before It Ships
Our dedication to quality goes beyond sourcing materials. Every fabric batch passes physical performance testing (tensile, thickness, density), chemical testing (resin content, durability), microscopic fiber inspection, mechanical testing (impact, flexural), and environmental aging tests — the same protocols we apply to materials used in our own aerospace, automotive, and sports equipment programs.
See how we test every batch on the Quality Control & Testing page.
FAQs
Carbon Fiber Fabric — Frequently Asked Questions
Common questions from composite workshops, brands, and OEM buyers. Anything else, just ask.
Get Factory-Direct Carbon Fiber Fabric Pricing
Send us your fabric spec — or just your application. Our engineers reply within 24 hours with a recommendation, pricing, and free swatches if you need them.
