Custom Carbon Fiber Sheets & Panels,
Made to Your Spec
Factory-direct carbon fiber sheets for builders, fabricators, and brands. Tell us the size, thickness, weave, and finish you need — we quote every cost upfront before production starts.
Request a Free Quote
One Sheet, Endless Applications
Our carbon fiber sheets and panels are used across industries — from motorsport to maker workshops. If your project needs high strength, low weight, and a premium look, this is the material.

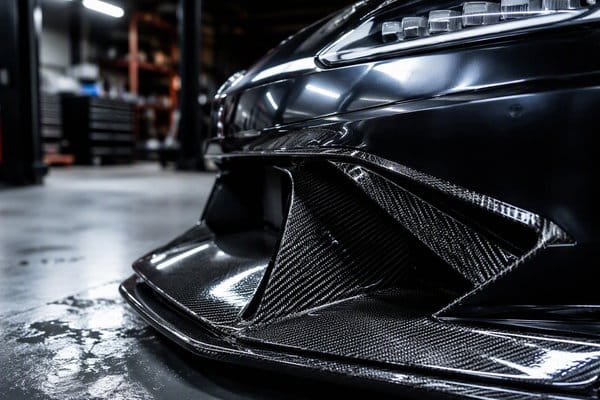

Automotive & Motorsport
Interior trim panels, splitters, wing endplates, seat brackets, firewall panels, dash inserts, underbody panels.

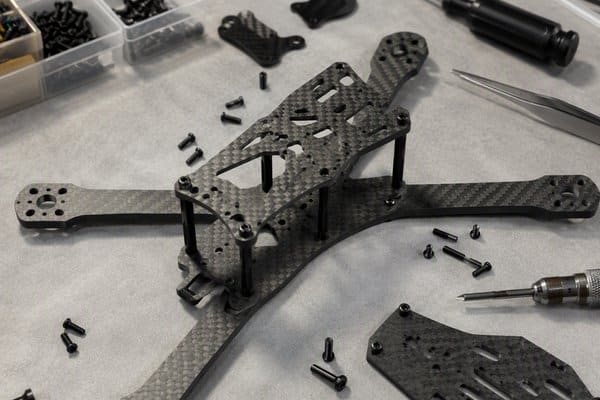

Drone / UAV / RC
Frame plates, arms, camera mounts, battery trays, landing gear.

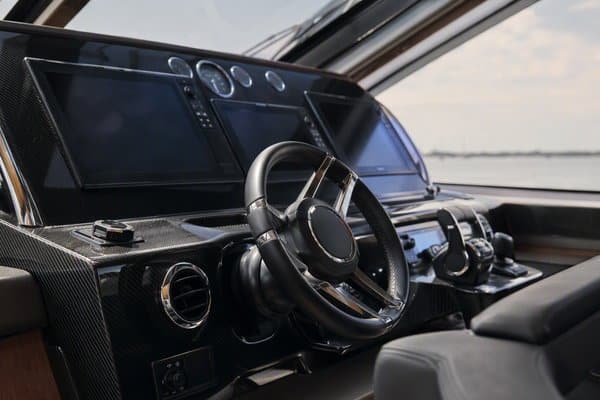

Marine & RV
Cabin panels, dashboards, table tops, decorative trim.

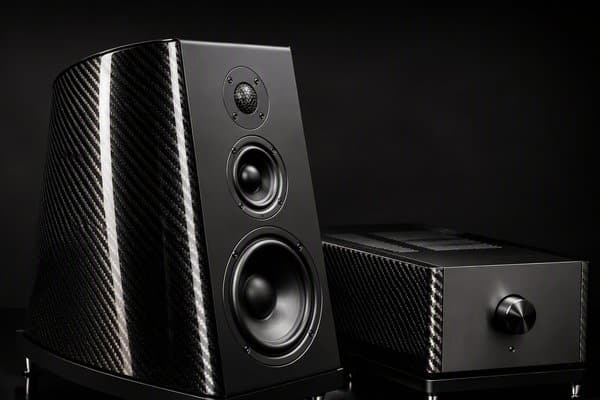

Audio & Electronics
Speaker enclosures, amplifier chassis, laptop & device skins.

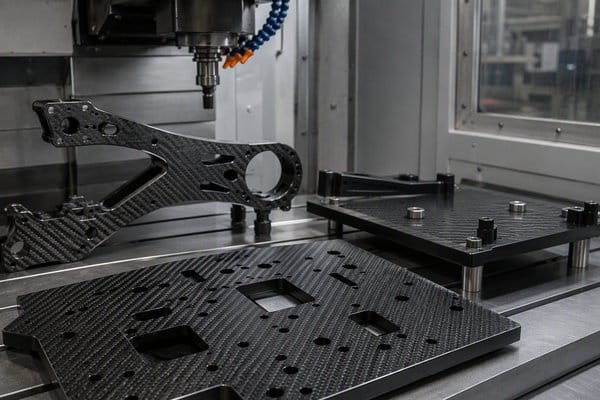

Industrial & Robotics
Jigs, fixtures, robotic arms, inspection tooling, medical table panels.

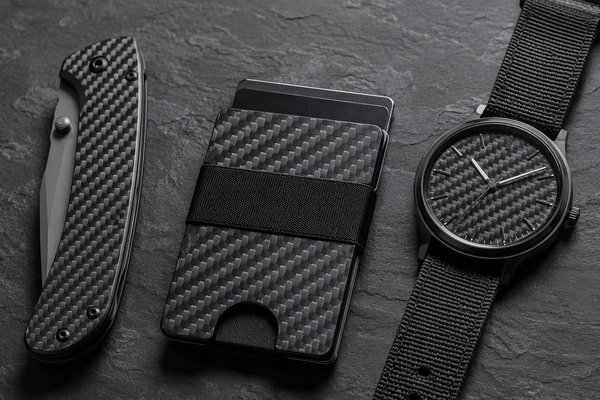

DIY, EDC & Lifestyle
Knife scales, wallets, watches, keyboards, furniture inlays, signage.
Fully Customizable — Build the Exact Sheet You Need
Every sheet is made to order. Combine the options below, or simply send us your drawing.
📏 Size
- Standard: 400×500, 500×500, 500×600, 1000×1000 mm
- Custom sizes up to 2000×3000 mm
📐 Thickness
- 0.5 – 10 mm standard increments
- Custom thickness for structural parts

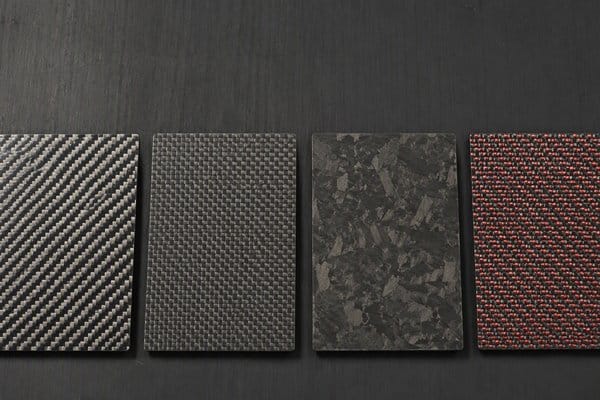

🧵 Weave Pattern

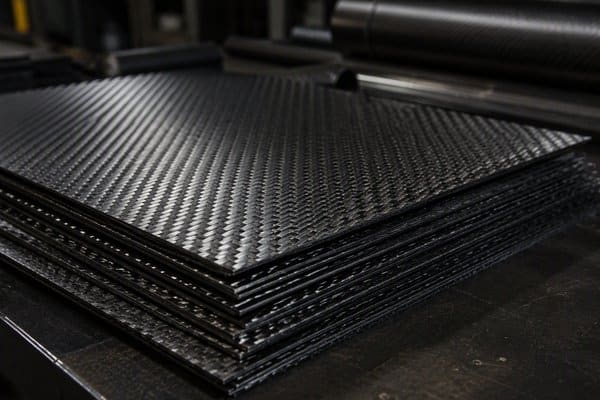

- 2×2 Twill — most popular
- 1×1 Plain — uniform & technical
- Forged / Chopped — marbled look
- Colored hybrid weave (red / blue / gold)

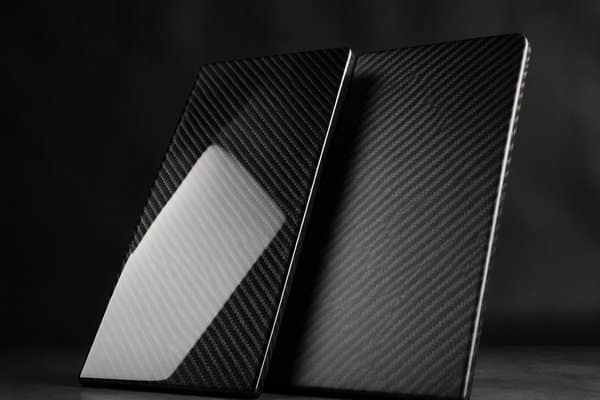

✨ Surface Finish
- Glossy or matte
- 1-side or 2-side cosmetic
- UV-resistant clear coat for outdoor use
🥪 Core & Structure
- Full carbon — maximum stiffness
- Carbon + fiberglass core — cost-effective
- Carbon + honeycomb / foam — ultra-light
🔩 Secondary Processing

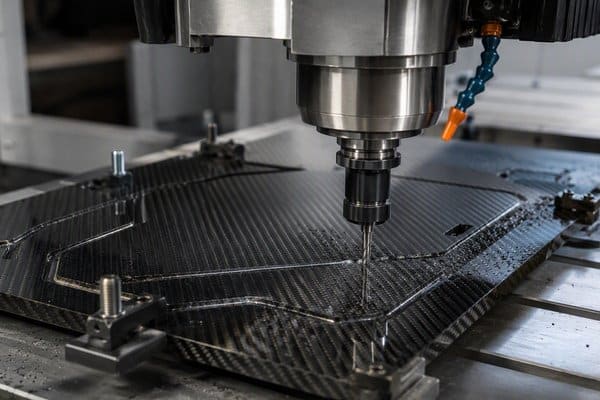

- CNC cutting to your drawing (DXF/DWG/PDF)
- Drilling, countersinking, tapping
- Edge chamfering, logo engraving
- Custom molding for curved parts
Standard Carbon Fiber Sheet Specifications
| Property | Specification |
|---|---|
| Material | 3K / 6K / 12K carbon fiber, epoxy resin |
| Process | Prepreg autoclave (premium) / hot press (economy) |
| Thickness Range | 0.5 – 10 mm |
| Thickness Tolerance | ± 0.1 mm |
| Max Size | 2000 × 3000 mm |
| Flatness | ≤ 0.5 mm / m |
| Density | ~1.55 g/cm³ |
| Service Temperature | -50 °C to +120 °C (higher on request) |
| Finish | Glossy / Matte, 1-side or 2-side cosmetic |
From Drawing to Delivery in 4 Steps
Send Requirements
Share your drawing (DXF/DWG/PDF) or just size, thickness, quantity, and application. A sketch works too.
Transparent Quote
Engineering review within 12 hours. One complete quote covering every cost — material, tooling/mold fees, CNC cutting, drilling, finishing, shipping.
What we quote is what you paySample Approval
Sample produced in ~7 days for your confirmation before mass production.
Production & Delivery
Batch production in 10–20 days by quantity. Every sheet inspected for flatness, finish, and dimensions. Worldwide express / air / sea.
Why Builders and Brands Work With Us
- 🏁 Backed by JC Sportline — A specialist brand family focused on automotive carbon fiber, with years of composite manufacturing experience behind every sheet.
- 🧩 If it’s carbon fiber, we make it — Sheets, panels, and finished parts for every application. One factory, full capability, one QC standard.
- 👤 A dedicated specialist for your project — From first inquiry to final delivery, one responsible person follows your project. Consult us with confidence — advice is always free.
- 💰 Transparent pricing — All costs (tooling, drilling, CNC, coating) confirmed in writing before production. Zero surprises.
- ⚖️ Two quality tiers — Prepreg autoclave for premium projects; hot-press for cost-sensitive volume. You choose.
- 📦 Low MOQ — Start from 10 pcs for standard sheets. Samples always available.
Frequently Asked Questions
What is the MOQ for custom carbon fiber sheets?
Standard-size sheets start from 10 pcs. For custom sizes or CNC-cut parts, MOQ depends on the design — send us your drawing and we will confirm within 12 hours.
Will I be charged extra for CNC cutting, drilling, or mold fees?
All processing costs are included in your quote before production starts. After we review your requirements, we tell you every cost upfront — material, tooling, cutting, drilling, and finishing. Nothing is added later.
Can you cut sheets to my drawing?
Yes. CNC cutting is available upon request. Send us DXF, DWG, or PDF files — even hand sketches with dimensions are acceptable for simple shapes.
What is the difference between prepreg autoclave and hot-press sheets?
Prepreg autoclave sheets have higher fiber content, lower weight, and a cleaner finish — ideal for visible or structural parts. Hot-press sheets are more economical and suitable for large panels and hidden applications. See how we run both processes in our mass production service.
Can carbon fiber sheets be bent or re-shaped after curing?
No. Cured carbon fiber is rigid and cannot be re-formed. If you need a curved part, we mold it to shape during production — send us the part design.
How do I choose the right thickness?
0.5–1 mm for decorative skins; 1.5–3 mm for drone frames, trim panels, brackets; 4 mm and above for structural plates, jigs, and load-bearing parts. Tell us your application and we will advise.
Do you offer surface protection for outdoor use?
Yes. UV-resistant clear coating is available and recommended for automotive, marine, and outdoor applications.
Get Your Custom Quote Today
Send us your drawing or requirements — we reply with a complete, all-inclusive quote within 12 hours.
Request a Quote No hidden fees. No obligations. Sample before production.
