Carbon Fiber Rear Diffuser Installation Guide: Bumper Removal & Sensor Transfer

A rear diffuser is the most involved bolt-on we make — because it is not a bolt-on at all. A full replacement diffuser means the rear bumper comes off, the OEM diffuser unclips, and your parking sensors move house. Done right, it is a satisfying half-day job. Done wrong, it is broken bumper clips and a dashboard full of sensor warnings.

As the manufacturer, we design our diffusers to reuse the factory mounting points, screws and sensor brackets. This guide is the same procedure our engineers follow, for both designs we produce: full replacement diffusers and stick-on diffuser trims.

View all carbon fiber rear diffuser parts >>

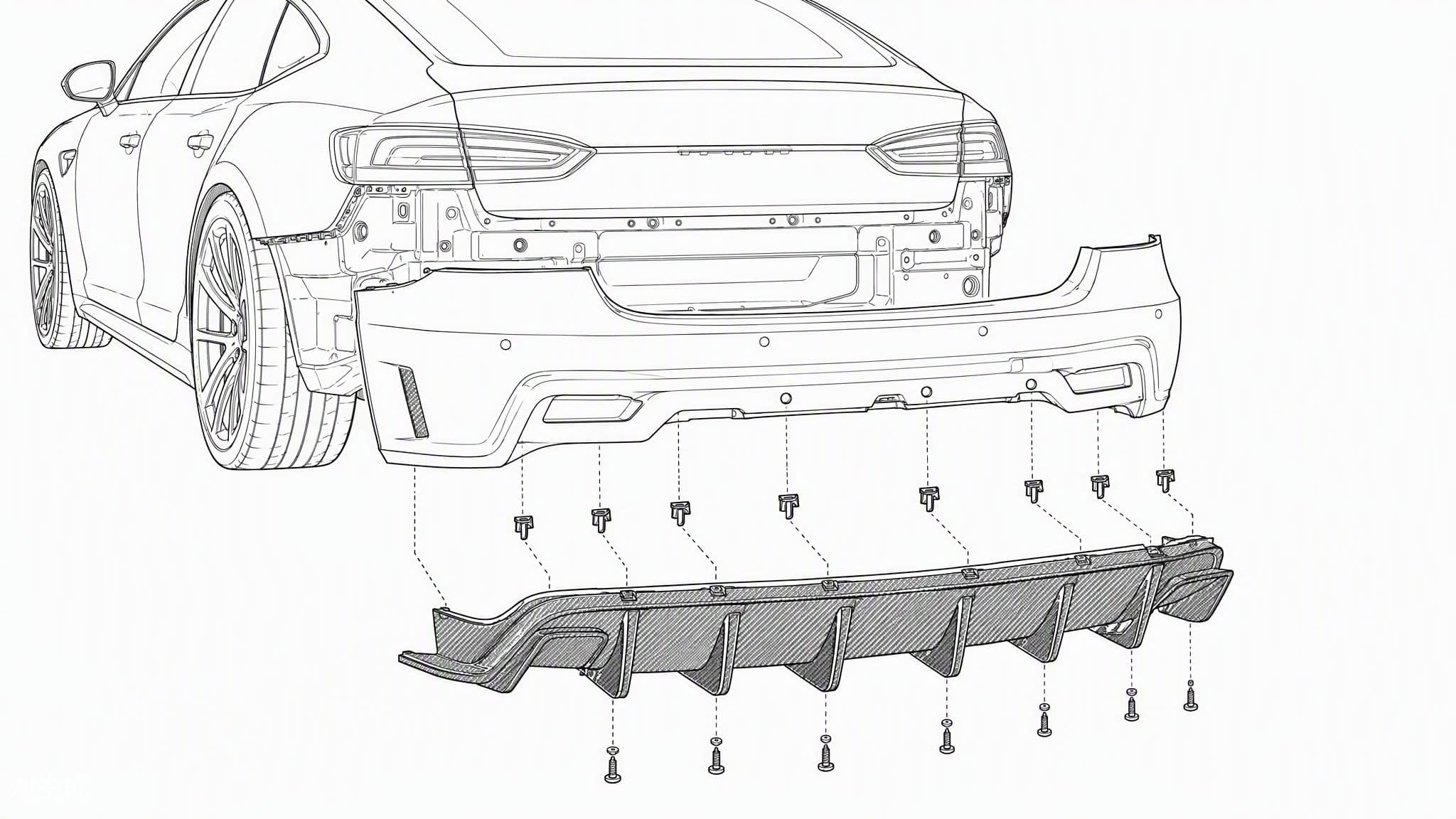

Rear bumper removal and carbon fiber diffuser mounting points diagram

Step 0: Know Which Design You Have

	Stick-On Diffuser Trim	Full Replacement Diffuser
What it is	Overlay panel over the OEM diffuser	Replaces the OEM diffuser entirely
Bumper removal	No	Yes
Sensors	Untouched	Must be transferred
Mounting	3M VHB tape	Factory screws + clips (+ tape)
Time	15–20 min	1.5–3 hours
DIY?	Yes	Confident DIY or a shop

If your part is a full lower bumper section with fin structure and sensor cutouts, it is a replacement — read on to Method B.

Tools & Prep (Both Methods)

Isopropyl alcohol or acetone, clean microfiber cloths
Plastic trim removal tools — metal screwdrivers break bumper clips
Socket/ratchet set or a power driver (low torque setting)
Jack stands or ramps for access under the rear
Painter’s tape, and your phone — photograph every connector before unplugging
A heat gun in cold weather — 3M tape bonds best above 15 °C / 59 °F

Full prep rules — cleaning, test fitting, temperature — are in our general installation guide.

Method A: Stick-On Diffuser Trims (3M Tape)

Dry-fit the trim and mark alignment with painter’s tape.
Clean the contact surface with alcohol; apply the included primer inside the tape zone only. ⚠️ Surface primer can dull or scratch visible paint if you spread it wide.
Peel the backing section by section, press from the center outward, 30–60 seconds per section.
Let the tape cure — no car washes or highway runs for 24–72 hours.

Method B: Full Replacement Diffuser (Bumper-Off)

This is how most of our diffusers mount, e.g. the BMW F92/F93 M8 diffuser: 13 factory-position M6×16 screws, upper-edge clips that lock into the factory mounting points, plus 3M VHB tape sealing the edges.

The procedure:

Remove the rear bumper. Screws in the wheel arches, along the bottom edge, and inside the trunk opening; then the bumper pulls straight back. Use trim tools on the clips — never pry with metal.
Unclip the OEM diffuser from the bumper (placed face-down on a soft blanket).
Transfer the parking sensors and sensor brackets to the carbon diffuser at the designated points. Unplug connectors carefully, photograph the routing first, and do not pull on the wiring.
Test-fit the carbon diffuser onto the bumper: upper-edge clips in first, then check the left-right symmetry and the exhaust tip clearance.
Drive the factory screws at the designated points, starting center and working outward. Snug, not tight — overtightening cracks carbon around the hole.
Apply the edge tape/sealant where indicated: clean with alcohol, primer inside the tape zone, peel and press.
Reinstall the bumper, reconnect every sensor connector, and check panel gaps before the final push-on.
Start the car and test parking sensors before driving off.

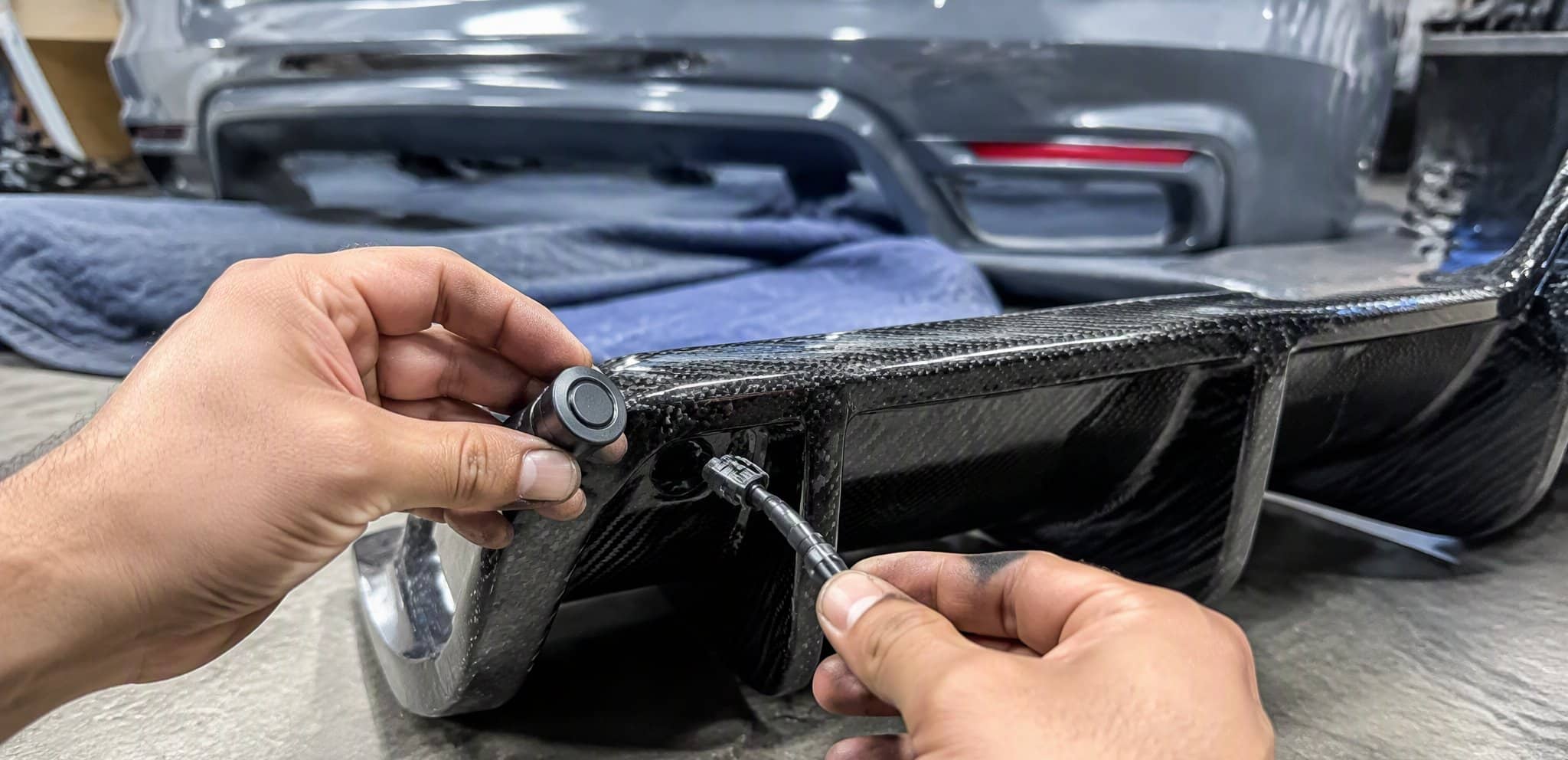

Transferring a parking sensor to a carbon fiber rear diffuser

Multi-piece designs (e.g. our BMW G90 M5 diffuser, 4 sections, 6× M6×16 screws + tape) follow the same order: assemble the sections on the bumper first, then mount as a unit.

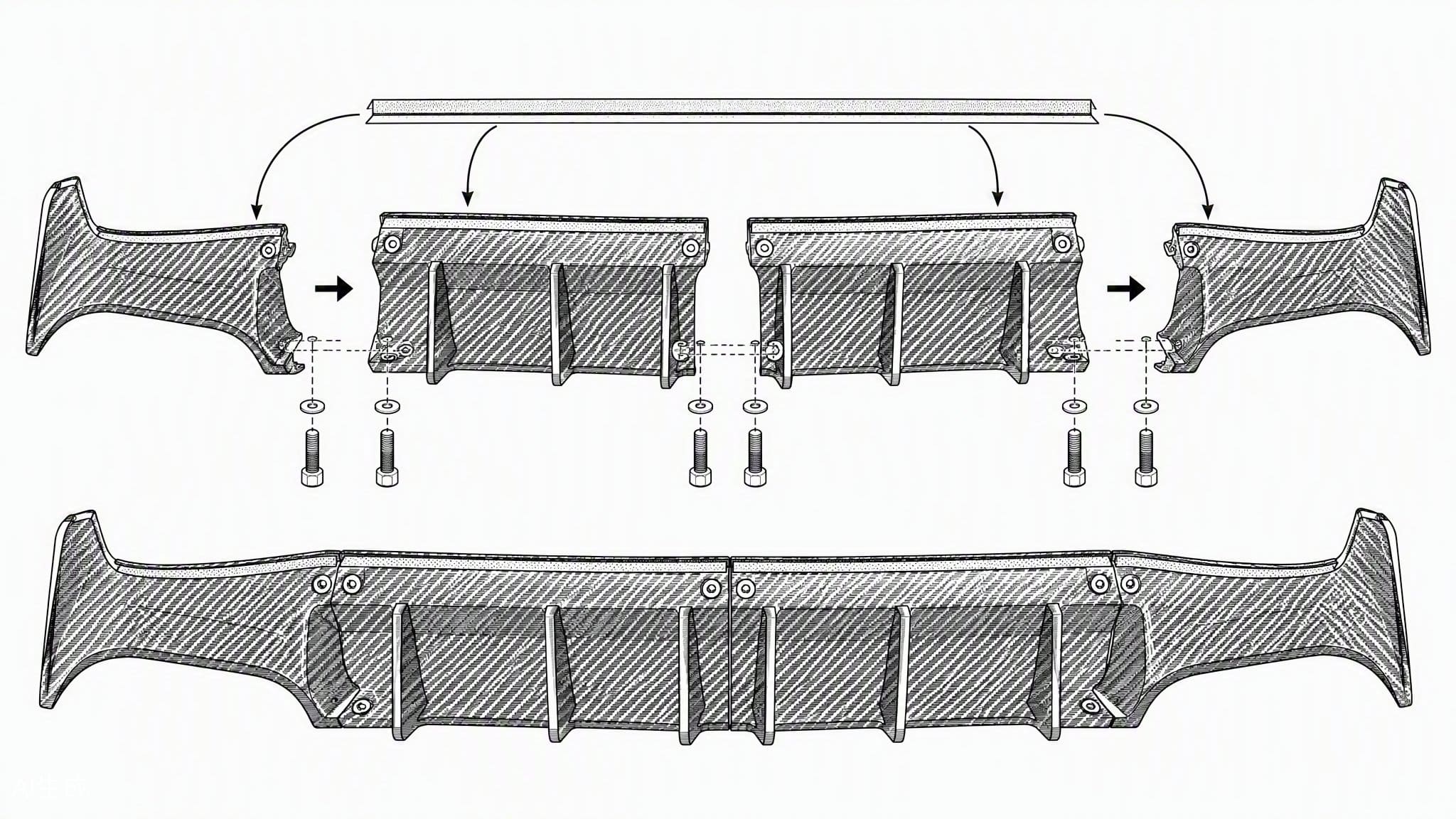

Multi-piece carbon fiber diffuser section assembly diagram

Time & Difficulty by Vehicle

Vehicle	Design	Time	Notes
BMW F92/F93 M8	Replacement, 13 screws + tape	1.5–2 hrs	Sensor transfer required
Ford Mustang GT	Replacement, 13 screws + clips	1.5–2 hrs	Upper-edge clips, no tape
BMW X3M/X4M/X5M	Replacement, 12 screws + tape	2 hrs	SUV height helps access
BMW G90 M5	Multi-piece replacement	2–3 hrs	4 sections, assemble first
Stick-on trims (all models)	Tape only	15–20 min	Easiest install we make

The 5 Mistakes That Ruin Diffuser Installs

Prying bumper clips with a screwdriver — use plastic trim tools; a broken clip means a rattling bumper forever.
Forgetting a sensor connector — photograph every plug before you unplug anything, and test all sensors before the first drive.
Pulling sensor wiring instead of releasing the bracket — the harness is short and the connectors are fragile.
Overtightening screws — carbon cracks around the hole before it feels tight.
Skipping the exhaust clearance check — carbon fiber tolerates heat, but a fin touching an exhaust tip will discolor the clear coat over time.

After Installation

24–72 hours: no car washes or highway speeds while the edge tape cures.
Re-check screw tension after the first week, then monthly.
Verify the parking sensors after the first rain or wash — a marginal connector shows up when wet.
Keep exhaust tips clean; soot buildup on carbon fins is normal and wipes off with pH-neutral shampoo.

FAQs

For a full replacement diffuser, yes — the factory mounting points and sensor brackets sit behind the bumper skin. Stick-on trims are the only no-removal option.

Yes. Our diffusers carry the OEM sensors and brackets at the factory positions. Transfer them carefully, reconnect every plug, and test before driving — a sensor warning after install almost always means one connector not fully seated.

Yes. The diffuser sits below and behind the exhaust flow, and our clear coat is rated for the temperatures seen there. What to avoid is direct contact between a fin and a hot exhaust tip — check clearance during test fitting.

Yes — the design assumes you reuse them. Keep every screw and clip when the OEM diffuser comes off. If a clip breaks, hardware stores carry the standard sizes.

Stop before driving any screw. Send us photos of the fitment plus your model and year — our team checks every case, and manufacturing deviations are covered by our after-sales policy. See how we guarantee fitment.

Plenty — most bolt-on and stick-on carbon parts are DIY-friendly with basic tools. Popular next installs after this one: Front Lip, Side Skirts, Rear Spoiler installation guides. All of them follow the same prep rules in our general installation guide.

Shopping for a rear diffuser? Browse all carbon fiber rear diffusers — 290+ applications including BMW G80 M3, BMW M3 and Ford Mustang. Every diffuser ships with the screws, clips and tape needed for that specific part.
