Carbon Fiber Vents Installation Guide: Bumper, Side & Fender Trims

Updated on:

·

916 words

·

4–6 minutes

Step-by-step carbon fiber vent installation from the manufacturer. Front bumper vents, side vents and fender vent trims with 3M VHB tape or adhesive sealant — no drilling.

Vent trims are the detail work of a carbon build — small panels that frame the air intakes and fender outlets. Every one we make installs with adhesive: 3M VHB double-sided tape or adhesive sealant, plus the included primer. No drilling, no bumper removal, no tools beyond cleaning supplies. The whole skill is in the prep and the alignment.

This guide covers all three vent locations we produce: front bumper vents, bumper side vents, and fender (side) vents.

View all carbon fiber vent parts >>

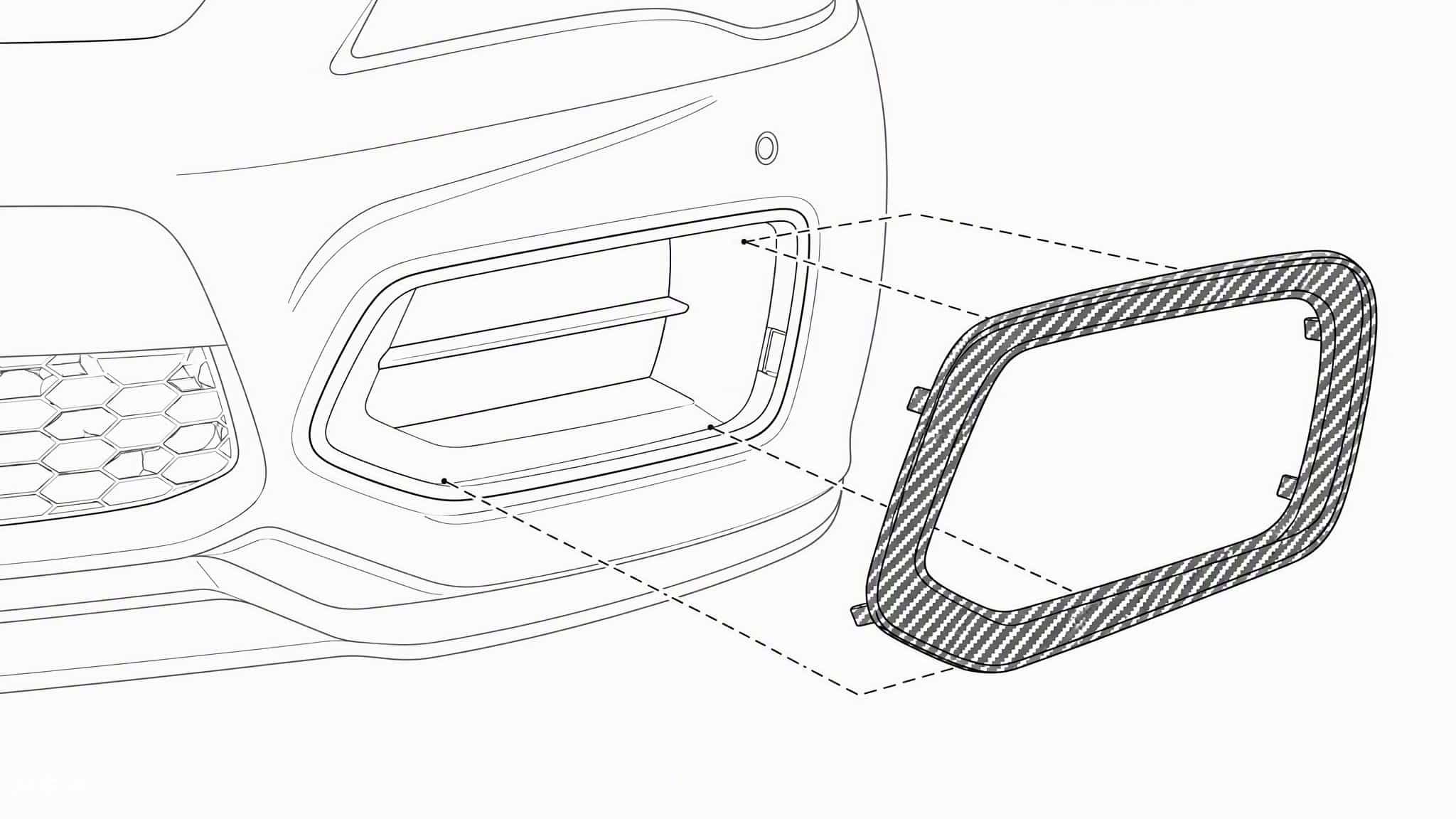

Carbon fiber bumper vent trim placement diagram

Step 0: Know Your Vent Location

Front Bumper Vents

Bumper Side Vents

Fender Vents

Position

Lower intake openings

Bumper corner surrounds

Front fender outlets

Quantity

2 pcs

2 pcs

2 pcs

Mounting

Tape or sealant

Tape or sealant

Tape or sealant

Time

20–30 min

20–30 min

20–30 min

DIY?

Yes

Yes

Yes

The procedure is identical for all three — only the reference points for alignment differ.

Tools & Prep

  • Isopropyl alcohol or acetone, clean microfiber cloths
  • Painter’s tape for alignment marks
  • The included primer
  • A heat gun in cold weather — 3M tape bonds best above 15 °C / 59 °F
  • A flashlight — vent openings are shadowed areas; check for sensors or wiring behind them before bonding

Full prep rules — cleaning, test fitting, temperature — are in our general installation guide.

The Procedure (All Vent Locations)

  • Clean the vent surround thoroughly — vent openings collect brake dust and road film. Alcohol-wipe the exact contact zone twice.
  • Check behind the opening with a flashlight: some bumpers route parking-sensor wiring or radar near the vents. The trim frames the opening — it must not press on any harness.
  • Dry-fit the trim into the opening. It should follow the factory edges with an even gap all around. Mark two corners with painter’s tape.
  • Apply primer inside the tape zone and let it flash off. ⚠️ Surface primer can dull or scratch visible paint if you spread it wide — stay inside the contact area.
  • Tape method: peel the backing film slightly outward at the corners, set the trim on your marks, then pull the tabs while pressing from the center outward, 30–60 seconds per section.
  • Sealant method: a continuous thin bead on the contact face, press onto the marks, strap with masking tape during the cure window.
  • Repeat on the other side, then compare both sides in daylight — vent trims frame openings symmetrically, and a tilted frame is obvious.

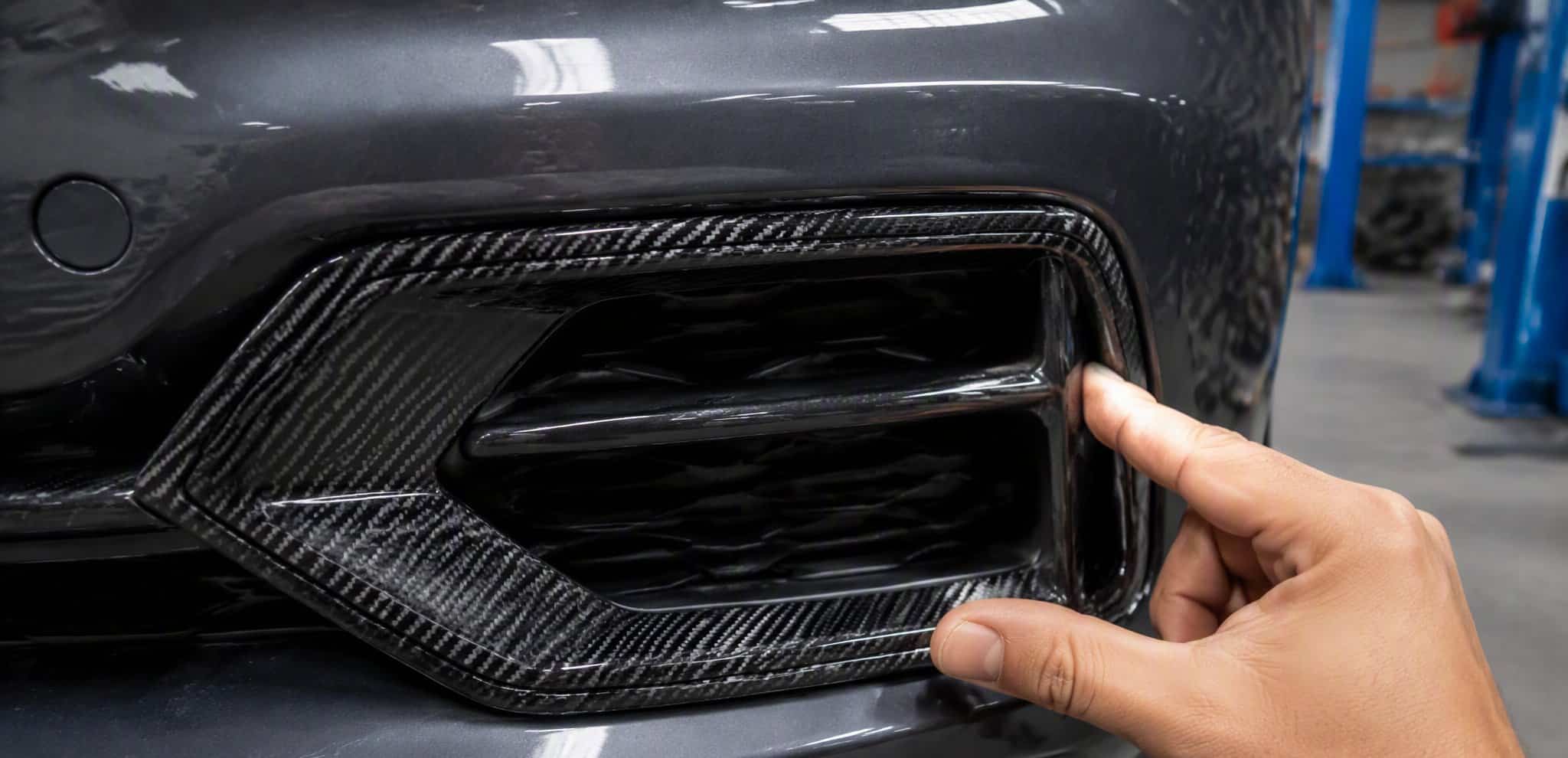

Pressing a carbon fiber vent trim into the bumper air intake

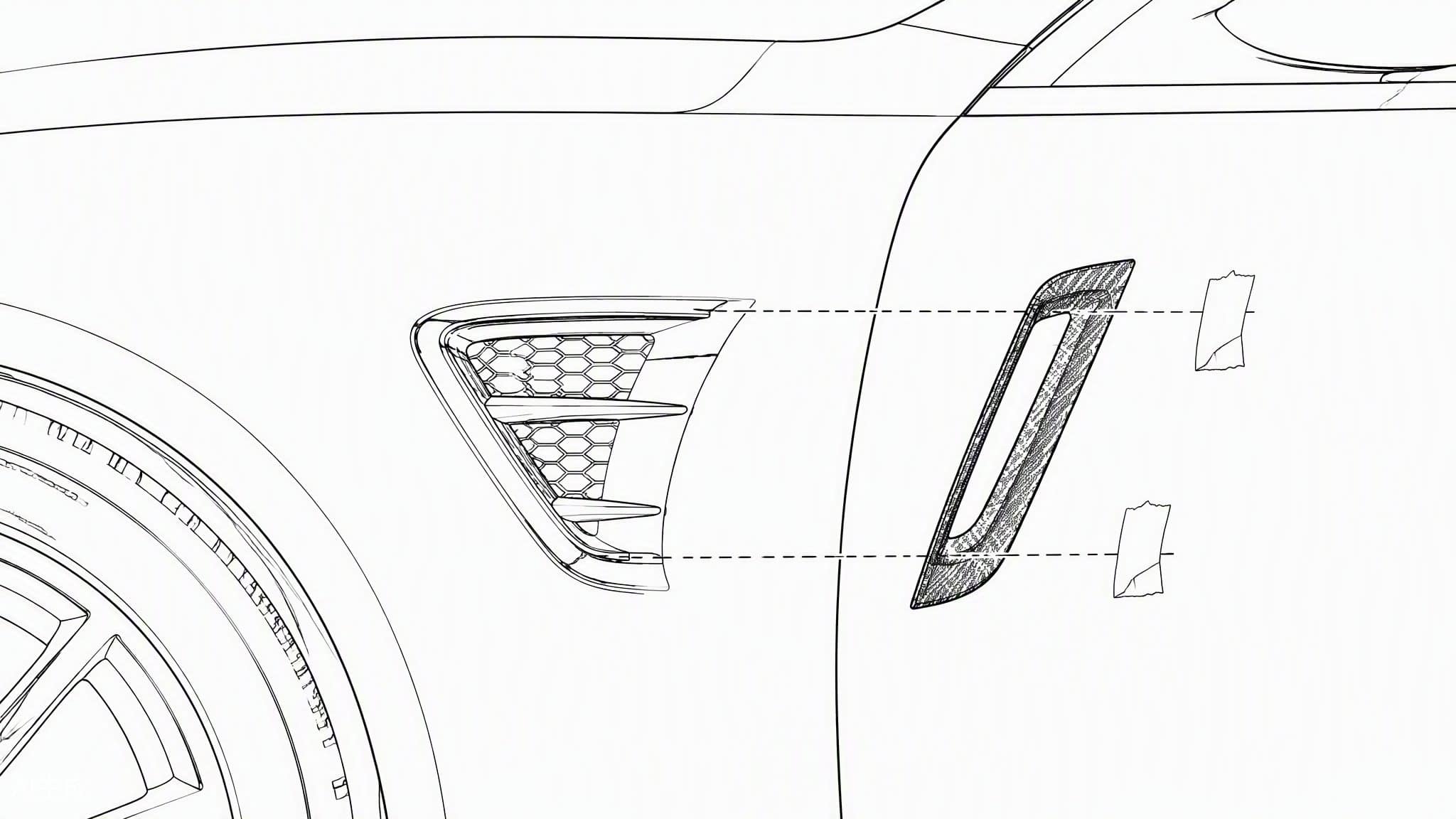

Carbon fiber fender vent trim alignment diagram

Time & Difficulty by Vehicle

Vehicle

Part

Location

Time

BMW X3M/X4M

Front bumper vents, 2 pcs

Lower intakes

25 min

BMW G90 M5

Bumper side vents, 2 pcs

Bumper corners

25 min

BMW X5M (F95)

Fender vents, 2 pcs

Front fenders

25 min

BMW G80 M3 / G82 M4

Vent trims

Front bumper

30 min

The 5 Mistakes That Ruin Vent Installs

  • Bonding over brake dust — vent zones are the dirtiest panels on the car; one alcohol wipe is not enough. Two passes, fresh cloth.
  • Aligning to the bumper instead of the opening — vent trims must follow the factory opening’s edges, not the bumper’s styling lines.
  • Trapping a wiring harness — check behind the opening first; a trim pressing on a sensor wire will chafe it through.
  • Skipping primer on textured plastic — many vent surrounds are textured; primer is what makes tape grip them.
  • Pressure washing within 72 hours — vents sit in direct airflow and direct washer jets. Let the adhesive cure.

After Installation

  • 24–72 hours: no car washes or highway speeds while the adhesive cures.
  • Check trim edges monthly; re-press early if a corner lifts.
  • Keep the vent openings clear of wax buildup — dried wax on carbon shows white.
  • Clean with pH-neutral shampoo; solvent cleaners haze the clear coat.

FAQs

No. Our trims frame the factory openings without reducing their cross-section. The air path stays exactly as the car’s engineers designed it.

No, as long as the trim does not press on the wiring. Check behind the opening with a flashlight during test fitting; the trim bonds to the surround, never to the sensor or its harness.

Tape for smooth painted surrounds, sealant for textured plastic or heavily curved zones. Both are rated for highway speed when the surface is cleaned and primed.

Tape-mounted trims come off with heat and fishing line, no trace. Sealant-mounted trims are effectively permanent.

Stop before priming or peeling any backing. Send us photos of the fitment plus your model and year — vent openings vary by bumper trim level, and our team checks every case. Manufacturing deviations are covered by our after-sales policy. See how we guarantee fitment.

Plenty — most bolt-on and stick-on carbon parts are DIY-friendly with basic tools. Popular next installs after this one: Hood, Front Lip, Grille installation guides. All of them follow the same prep rules in our general installation guide.

Shopping for vent trims? Browse all carbon fiber vents — applications including BMW G80 M3, BMW M3 and BMW M5. Every set ships with 3M VHB tape, sealant and primer included.
