Carbon Fiber Canards Installation Guide: 3M Tape & Adhesive Sealant Mounting

Canards are pure adhesive installs — no screws, no clips, no drilling. That makes them the easiest carbon parts to mount and the easiest to mount crooked. Because they sit at eye level on the bumper, a 3 mm difference between left and right is visible from across the parking lot. This guide is about getting the bond right and the symmetry perfect, the first time.

As the manufacturer, every canard set we ship mounts with 3M VHB double-sided tape or adhesive sealant — your choice, same positions. This is the procedure for both front bumper canards and rear canards.

View all carbon fiber canard parts >>

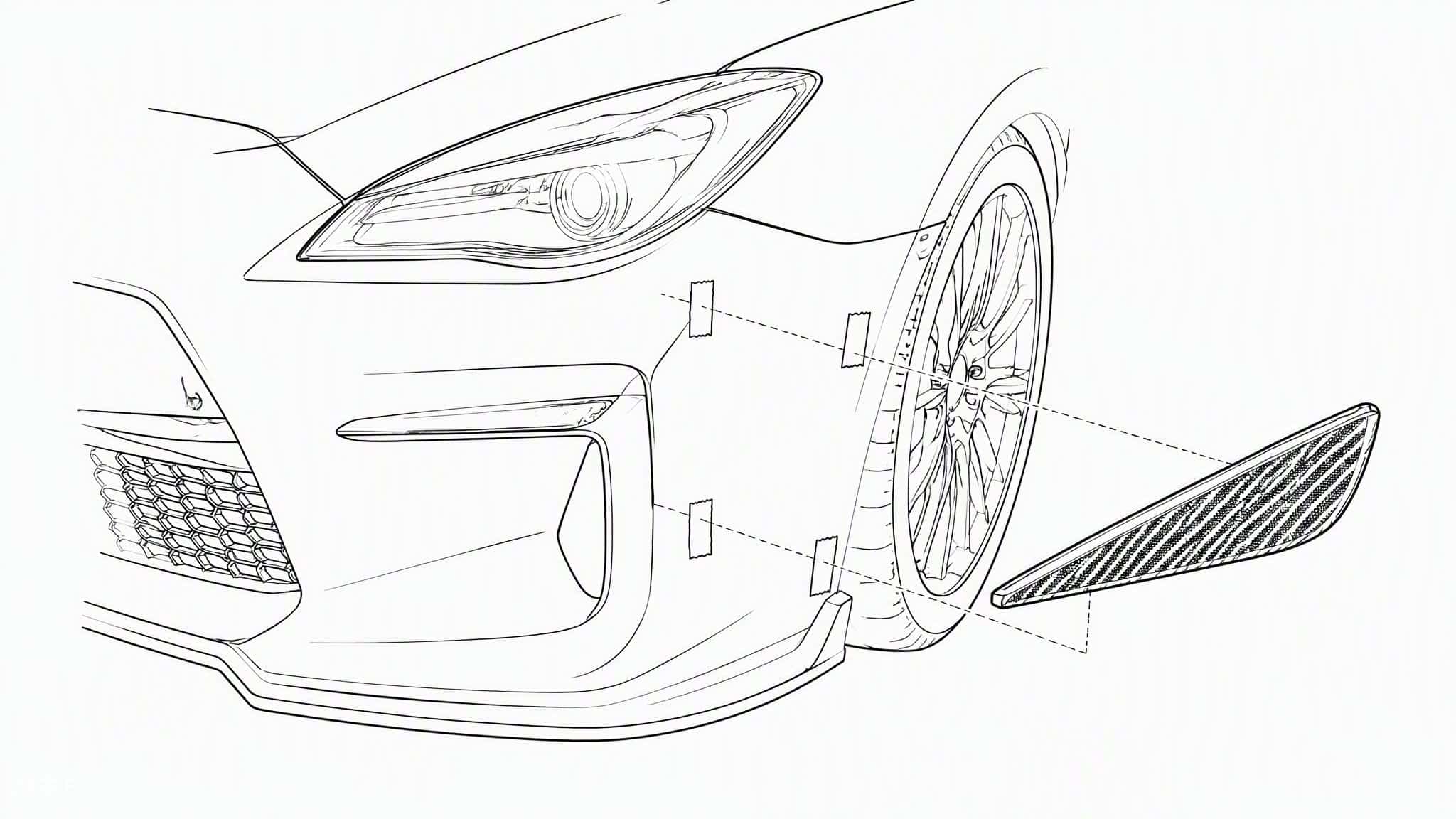

Carbon fiber canard positioning diagram with tape alignment marks

Step 0: What’s in the Box

	Front Canards	Rear Canards
Quantity	2 or 4 pcs (one or two per side)	2 pcs (one per side)
Mounting	3M VHB tape or adhesive sealant	3M VHB tape or adhesive sealant
Bumper removal	No	No
Time	30–45 min	20–30 min
DIY?	Yes	Yes

Tape or sealant? Tape is faster, repositionable for the first seconds, and removable later with fishing line. Sealant (glass adhesive) fills small surface gaps better and is essentially permanent. Both are rated for highway speeds — pick tape unless the bumper surface is heavily curved at the contact zone.

Tools & Prep

Isopropyl alcohol or acetone, clean microfiber cloths
Painter’s tape — lots of it; this is a measuring job
A measuring tape or ruler, and a marker for tape marks
The included primer
A heat gun in cold weather — 3M tape bonds best above 15 °C / 59 °F
If using sealant: masking tape to hold the canard while it cures

Full prep rules — cleaning, test fitting, temperature — are in our general installation guide.

The Procedure (Front & Rear Canards)

Wash and degrease the bumper where the canards will sit, then alcohol-wipe the exact contact zones. Road film and wax are the enemy.
Dry-fit each canard and mark the outline corners with painter’s tape. Do all pieces before bonding any.
Measure for symmetry: pick fixed references — bumper corner, fog lamp edge, wheel arch lip — and measure left vs right. Adjust the tape marks until both sides match within a couple of millimeters.
Apply primer inside the tape marks on the bumper, and let it flash off. ⚠️ Surface primer can dull or scratch visible paint if you spread it wide — stay inside the marks.
Tape method: peel the backing film slightly outward at each end, set the canard on your marks, then pull the tabs out while pressing firmly from the base to the tip, 30–60 seconds per zone.
Sealant method: apply a continuous bead to the canard’s contact face, press onto the marks, and strap it with masking tape for the cure window.
Step back and sight along the bumper from the front and both sides. Fix symmetry issues immediately — tape gives you minutes, sealant gives you slightly longer.

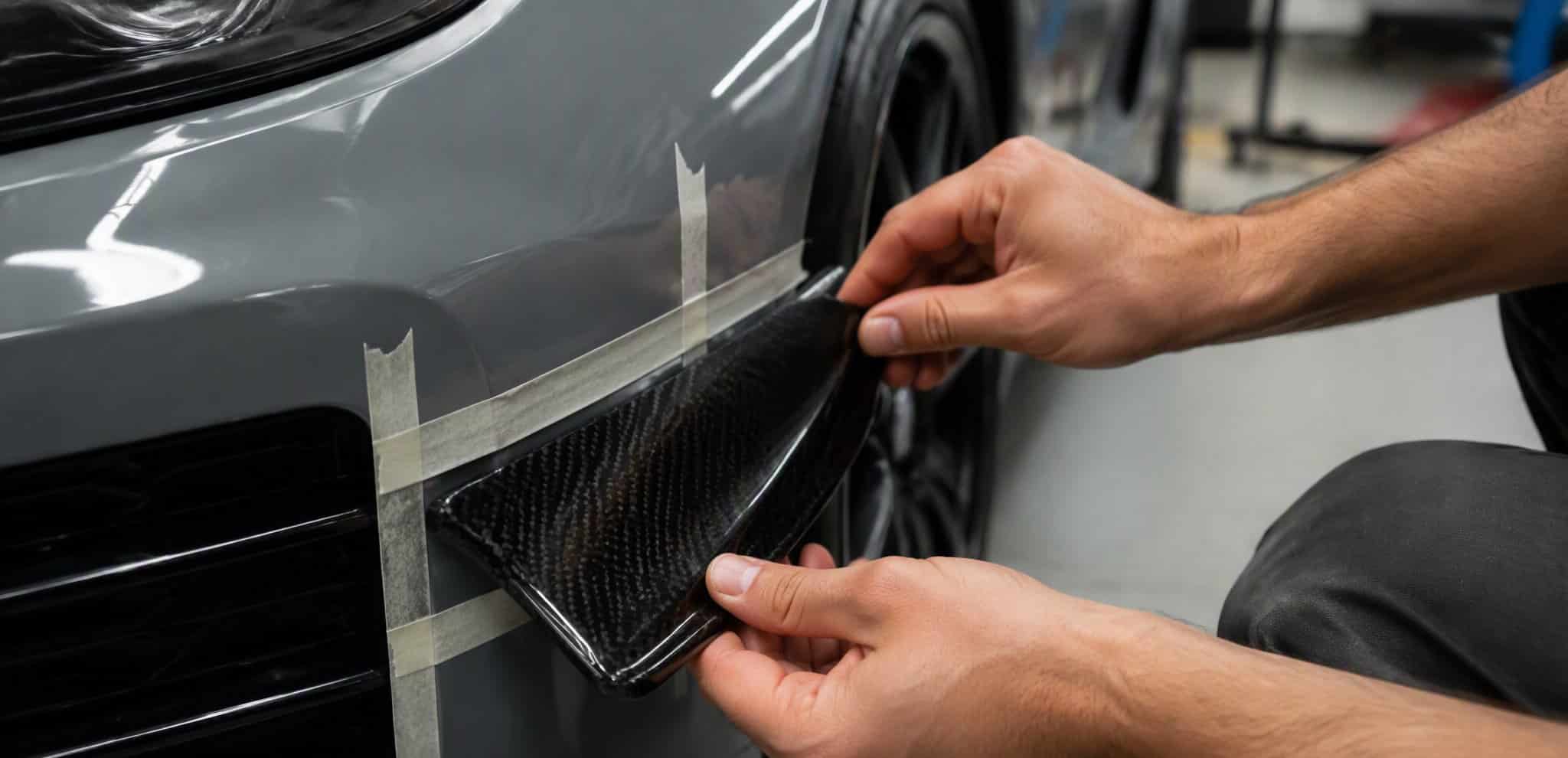

Pressing a carbon fiber canard onto the front bumper corner

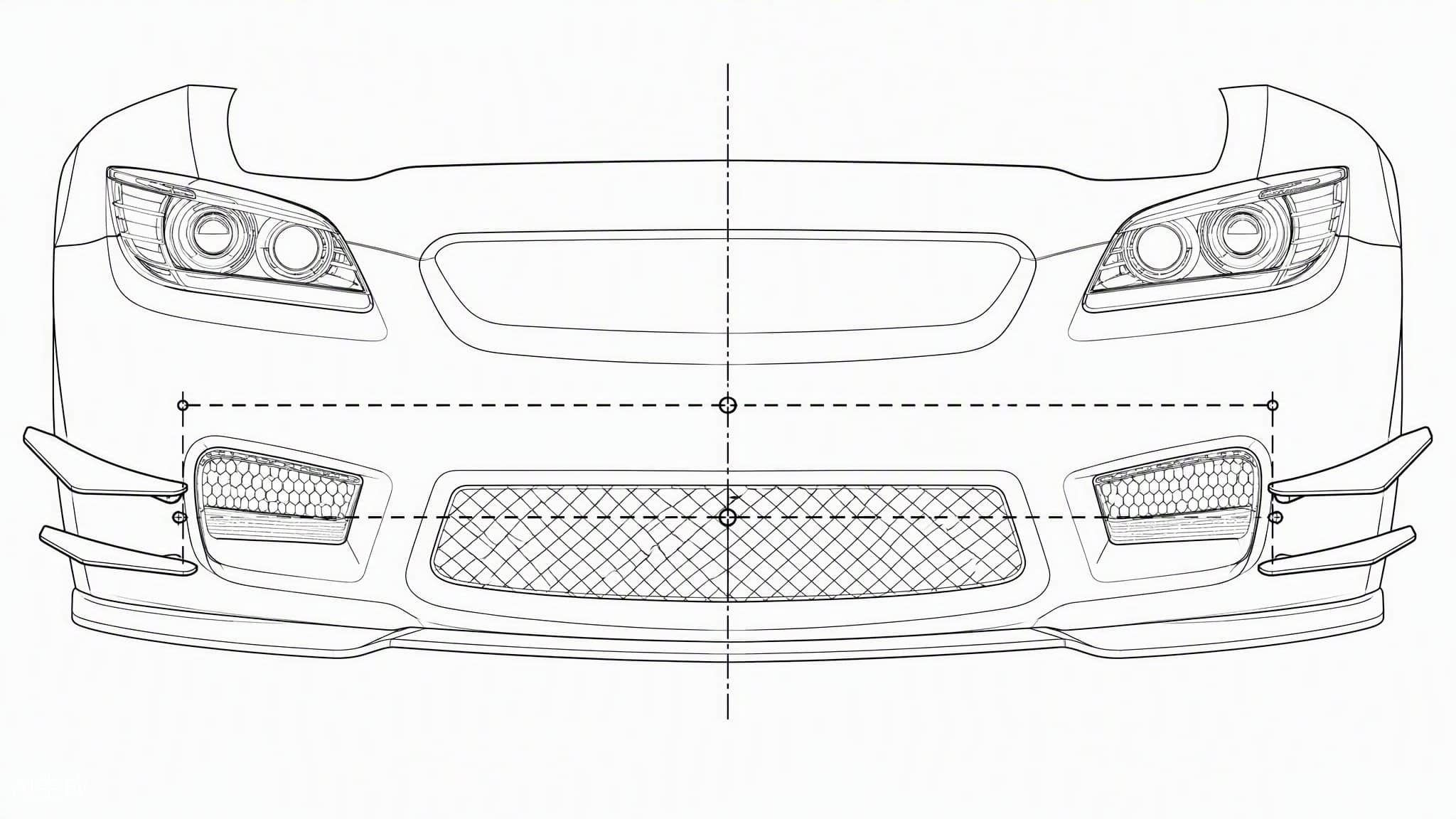

Canard left-right symmetry measurement diagram

Time & Difficulty by Vehicle

Vehicle	Set	Position	Time
BMW F92/F93 M8	2 front canards	Front bumper corner	30 min
BMW G80 M3 / G82 M4	4 front canards	Two per side, stacked	45 min
BMW G90 M5	2 rear canards	Rear bumper edge	25 min
BMW X5M	2 front canards	Front bumper corner	30 min

The 5 Mistakes That Ruin Canard Installs

Bonding before measuring both sides — always tape-mark and measure all pieces first; asymmetry is permanent once the tape grabs.
Skipping the alcohol wipe — bumper corners collect wax and road film; tape will not bond through them.
Working below 15 °C without a heat gun — cold VHB adhesive stays stiff and never wets the surface.
Peeling all the backing before positioning — use the pull-tab method: tabs out, position, then peel while pressing.
Washing the car within 72 hours — high-pressure jets at a fresh tape edge will lift it.

After Installation

24–72 hours: no car washes, no pressure washers, no highway speeds while the adhesive cures.
Check the canard edges monthly; re-press early if a corner lifts.
Canards are sacrificial aero parts — a parking bump that would scuff a bumper can crack a canard. Drive accordingly.
Clean with pH-neutral shampoo; solvent cleaners haze the clear coat.

FAQs

On a street car at legal speeds, they are primarily styling. They do manage airflow around the bumper corners, and on track cars they add measurable front-end stability — but mount them straight either way, because crooked canards generate looks, not downforce.

Properly cured 3M VHB tape on a clean, primed surface holds at any highway speed — it is the same tape OEMs use for exterior trim. Sealant is stronger still but permanent. Choose tape unless the contact surface is heavily contoured.

Tape-mounted: yes — warm with a hair dryer, saw through with fishing line, roll off the residue. Sealant-mounted: they are effectively permanent; removal risks pulling paint.

No. All our canard sets are adhesive-only. If anyone tells you to drill for canards, the canards are not designed for your bumper.

Stop before applying primer or peeling tape. Send us photos of the fitment plus your model and year — bumper shapes vary by trim, and our team checks every case. Manufacturing deviations are covered by our after-sales policy. See how we guarantee fitment.

Plenty — most bolt-on and stick-on carbon parts are DIY-friendly with basic tools. Popular next installs after this one: Front Lip, Rear Diffuser, Rear Spoiler installation guides. All of them follow the same prep rules in our general installation guide.

Shopping for canards? Browse all carbon fiber canards — applications including BMW G90 M5, BMW M3 and BMW M5. Every set ships with 3M VHB tape, sealant and primer included.
